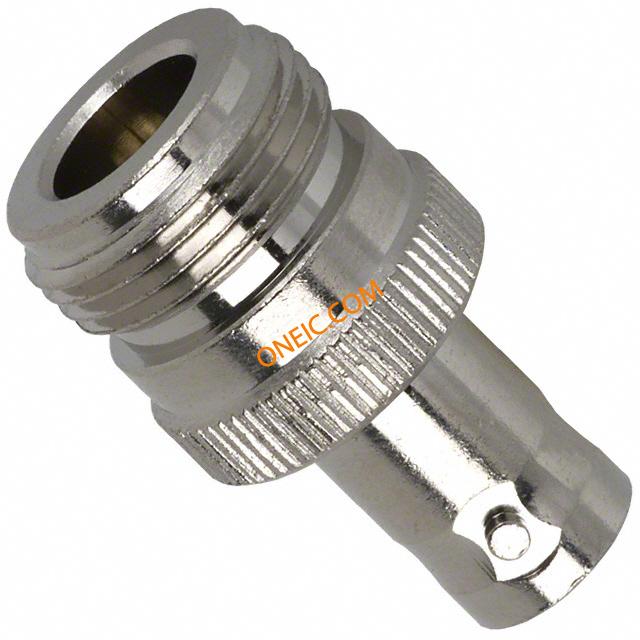

242100
| Manufacturer | |
| Description | Conn Type N-BNC Adapter F/F 0Hz to 4GHz 50Ohm ST Gold CONN ADT N JACK-BNC JACK connector;rf coaxial;between series adapter;n jack to bnc jack RF Adapters - Between Series BNC JACK TO N JACK ADAPTER RF/COAXIAL ADAPTER, N JACK-BNC JACK connector, rf coaxial, between series adapter, n jack to bnc jack |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ACX1358 | Part # Aliases | 319-0261 92C7245 |
| Product Category | RF Adapters - Between Series | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Isolation | Polytetrafluoroethylene | Conversion Type | Between Series |
| Frequency - Max | 4GHz | Frequency Range | DC to 4 GHz |
Mechanical
| Length | 30 | Weight | 0.807774 oz |
| Material | Brass | Packaging | Bulk |
| Body Finish | Nickel | Orientation | Straight |
| Weight (g): | 2.80000 | Body Material | Brass |
| Mounting Type | Straight | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | BNC N |
| Contact Finish | Gold | Housing Finish | Nickel |
| Contact Material | Phosphor Bronze | Housing Material | Brass |
| Overall Diameter | 17 | Primary Material | Adapter |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | 1st Connector Gender | Jack (Female) |
| 2nd Connector Gender | Jack (Female) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | :Straight Adapter |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Jack |
| 2nd Connector Mounting Feature | Normal | ||
Product Info
| Typ | Type N-BNC Adapter | Type | Type N-BNC Adapter |
| Style | Straight | Gender | F/F |
| RF Type | N | Adapter Type | Jack to Jack |
| Center Gender | Female to Female | Adapter Series | BNC to N |
| RF Family/Standard | 242100 | Application Specifics | Commercial |
| Convert To (Adapter End) | BNC Jack, Female Socket | Convert From (Adapter End) | N Jack, Female Socket |
