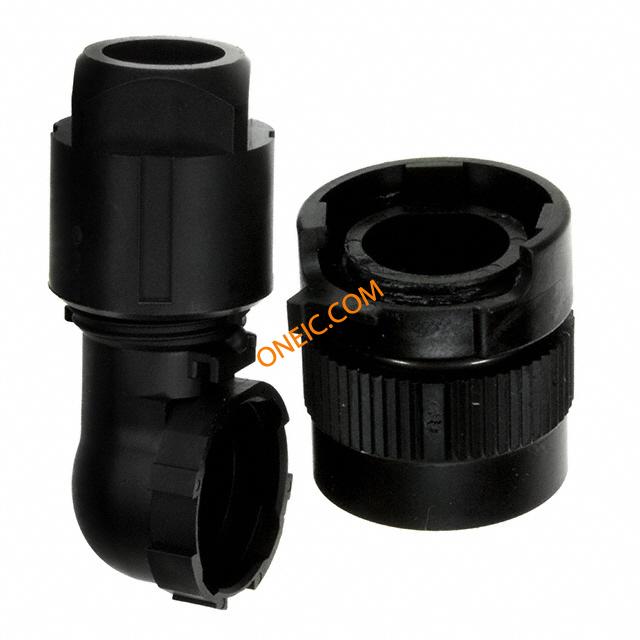

JN1FS10SL2
| Manufacturer | |
| Description | Standard Circular Connector 10P #22 R/A CIR PLUG CONN HSG PLUG 10POS RA CRIMP SKT CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PLUG R/A BLACK |
| Category |
Business
| Other Names | 670-1066 | Product Category | Standard Circular Connector |
| Standard Package | 10 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage Rating | 200 V | Current Rating (Max) | 3 A |
Mechanical
| Packaging | Tray | Orientation | N (Normal) |
| Shell Style | Plug | Contact Size | 22 |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug for Female Contacts | Contact Finish | Gold |
| Fastening Type | Push-Twist | Mounting Style | Free Hanging |
| Primary Material | Sealed | Termination Style | Crimp |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | S | Shell Material, Finish | Synthetic Resin |
Product Info
| Note | Contacts Not Provided | Series | JN1 / JN2 |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | ||
Documents & Media
Similar Parts
JN1-22-22S-PKG100
JAE Electronics
Standard Circular Contacts 22p contacts for JN1/2 series CONTACT SKT CRIMP 21-25AWG GOLD JN1andJN2StandardCircular22pConnectors(PricedasPackof100) LOOSE SOCKET CONTACT 25-21AWG
JN1-22-26S-10000
JAE Electronics
Standard Circular Contacts 26p contacts for JN1/2 series CONTACT SKT CRIMP 26-28AWG GOLD

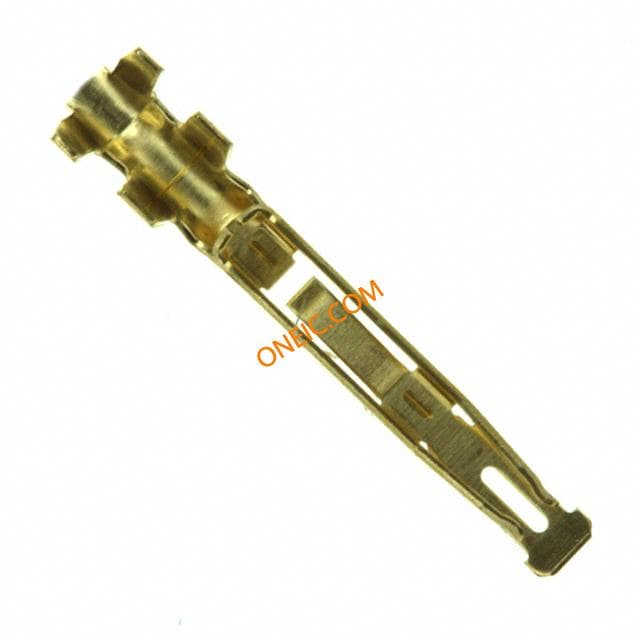

JN1-22-22S-10000
JAE Electronics
Standard Circular Contacts JN1/JN2 #22 CONTACT SOLD INDIVIDUALLY CONTACT SKT CRIMP 21-25AWG GOLD SOCKETCONTACTJN1/JN2Series#25to#21AWG10,000pcreel SOCKET CONTACT AWG 21-24

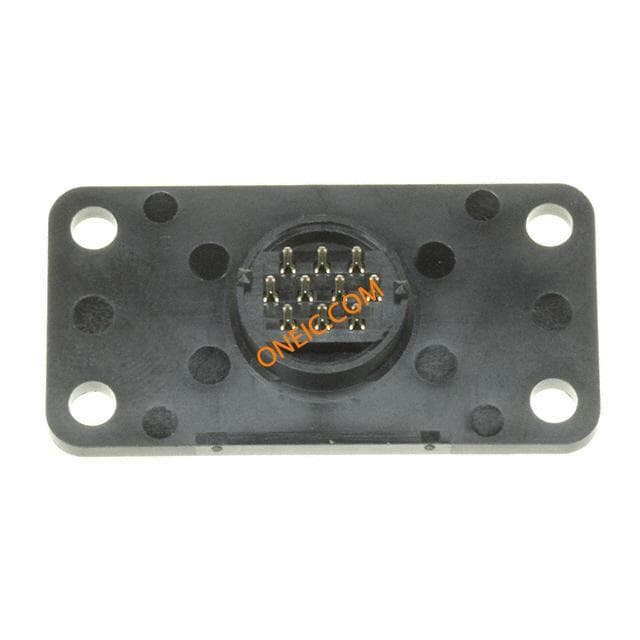

JN1AS10UL1
JAE Electronics
Standard Circular Connector 10P RECPT PANEL MT CONN RCPT WATERPRF 10POS T/H PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PANEL MOUNT RECEPT

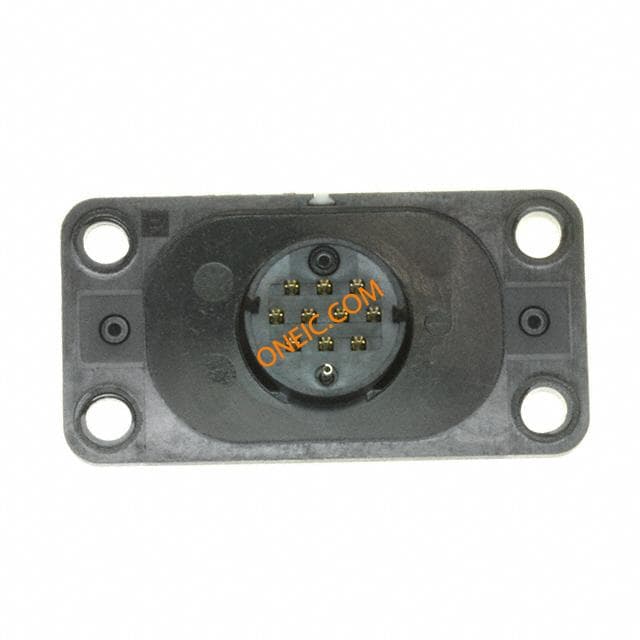

JN2AS10UL1-R
JAE Electronics
Standard Circular Connector 10P PANEL MOUNT THRU HOLE PIN CONN RCPT 10POS #22 T/H PIN CIRCULARCONNECTOR-METAL-PCB/PANELTOCABLE-IP67,10CONTACTS 10P SMALL CIRCULAR CONNECTOR M

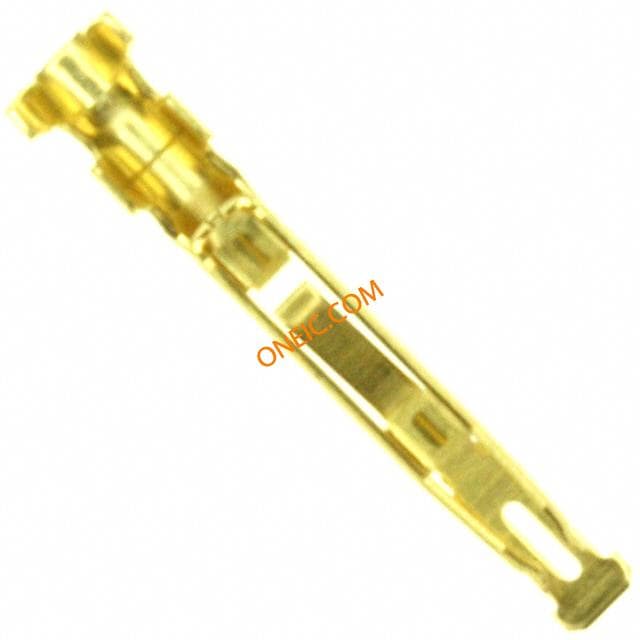

JN1-22-26S-PKG100
JAE Electronics
Standard Circular Contacts 26p contacts for JN1/2 series CONTACT SKT CRIMP 26-28AWG GOLD CONTACTSFORJN1/2SERIES,26CONTACTS 01P SOCKET CRIMP CONTACT GOLD

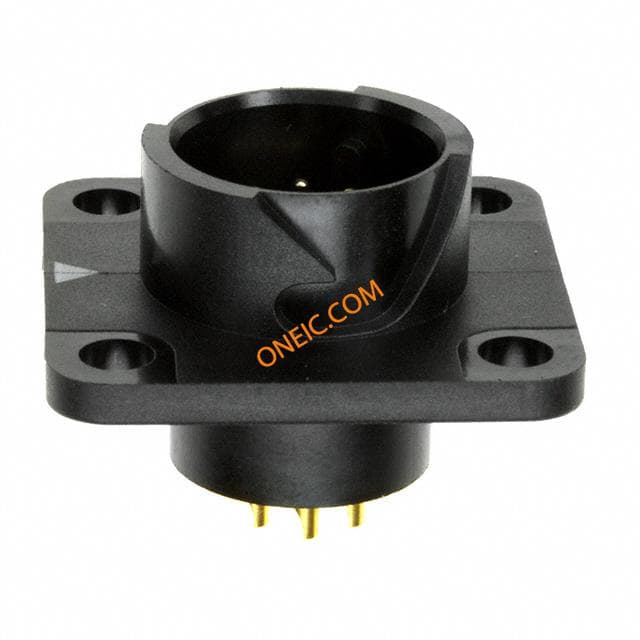

JN1AS10ML2-R
JAE Electronics
Standard Circular Connector 10p Panel mnt recep solder BLK CONN RCPT WATERPRF 10POS SLD PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PIN AWG22 BLACK AU

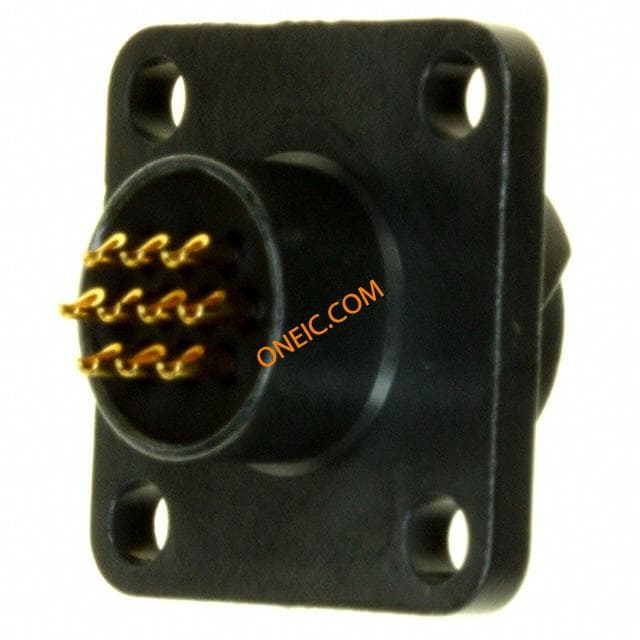

JN2AS10ML2-R
JAE Electronics
Standard Circular Connector 10p PCB/Pnl to Cable IP67 Metal CONN RCPT 10POS #22 SOLDER PIN CIRCULARCONNECTOR-METAL-PCB/PANELTOCABLE-IP67,10CONTACTS
JN1KS10PL1
JAE Electronics
Standard Circular Connector 10P Panel to Cable IP67 CONN RCPT WALL 10POS CRIMP PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS

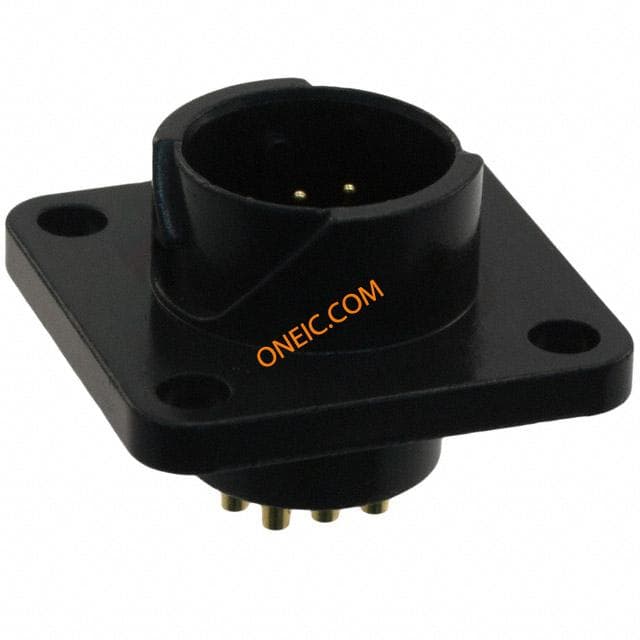

JN2AS10ML1-R
JAE Electronics
Standard Circular Connector 10 POS. GOLD RECPT. PNL/MNT SOLDER/TERM CONN RCPT 10POS PIN W/SOLDER RCPTCIRC10POSPNLMNT

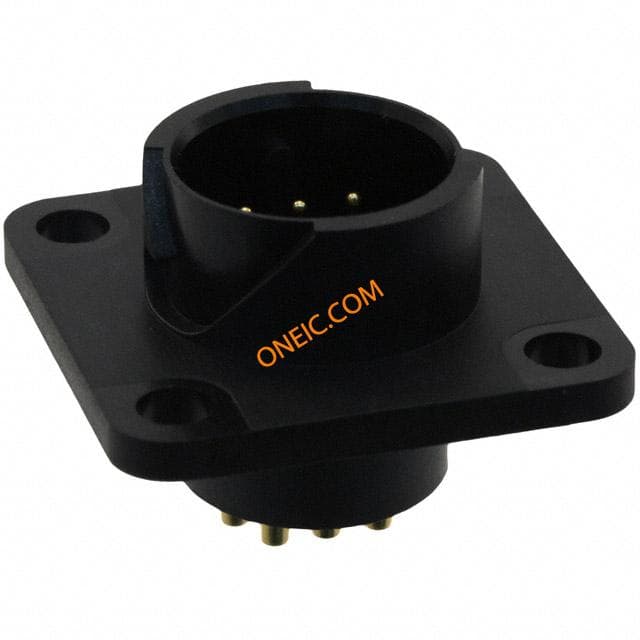

JN1AS10ML1-R
