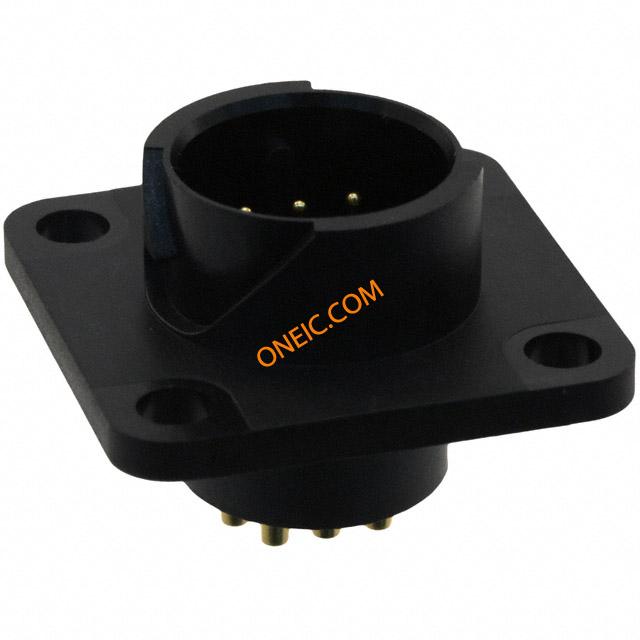

JN1AS10ML1-R
| Manufacturer | |
| Description | Standard Circular Connector 10p Panel mnt recep solder BLK CONN RCPT 10POS W/PIN SLD BLACK RCPTCIRC10POSPNLMNT 10P CIRCULAR PIN AWG22 BLACK |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage Rating | 200VAC | Current Rating (Max) | 3A |
Mechanical
| Packaging | Bulk | Orientation | N (Normal) |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Type | STRAIGHT | Mounting Type | Panel Mount, Flange |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Twist | Primary Material | Sealed |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | S | Shell Material, Finish | Synthetic Resin |
| Wire Gauge or Range - AWG | 28 | ||
Product Info
| Series | JN1 / JN2 | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -20°C ~ 125°C |
