点击放大查看

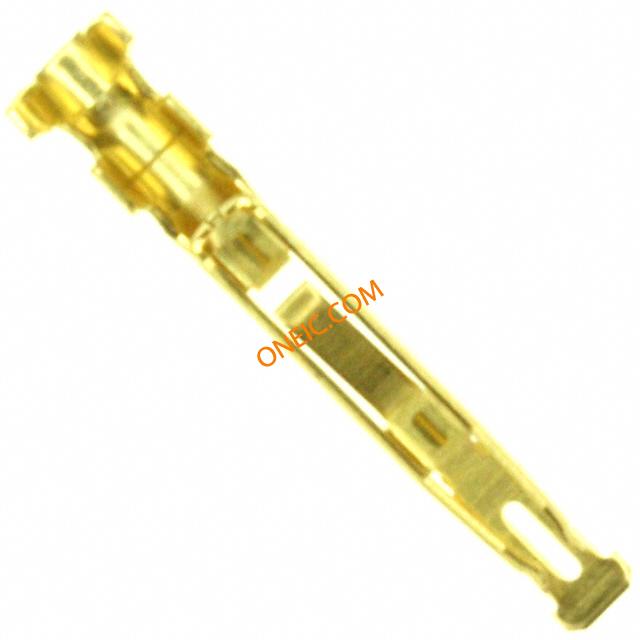

JN1-22-26S-PKG100
| Manufacturer | |
| Description | Standard Circular Contacts 26p contacts for JN1/2 series CONTACT SKT CRIMP 26-28AWG GOLD CONTACTSFORJN1/2SERIES,26CONTACTS 01P SOCKET CRIMP CONTACT GOLD |
| Category |
Business
| Product Category | Standard Circular Contacts | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | JN1/JN2 | ||
Mechanical
| Size | 22 | Material | CopperAlloy |
| Packaging | Bulk | Wire Gauge | 26-28 AWG |
| Orientation | FEMALE | Contact Type | STRAIGHT |
| Pin or Socket | Socket | Contact Finish | Gold |
| Contact Material | Copper Alloy | Primary Material | Contact |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 01 | Contact Termination | Crimp |
| Contact Finish Thickness | 3.9µin (0.10µm) | Wire Gauge or Range - AWG | 28 TO 20 |
| Contact Material - Plating | CRIMP | ||
Product Info
| Type | Socket | Series | JN1 / JN2 |
Environmental
| Ingress Protection | 67 | Operating Temperature | GOLD |
