点击放大查看

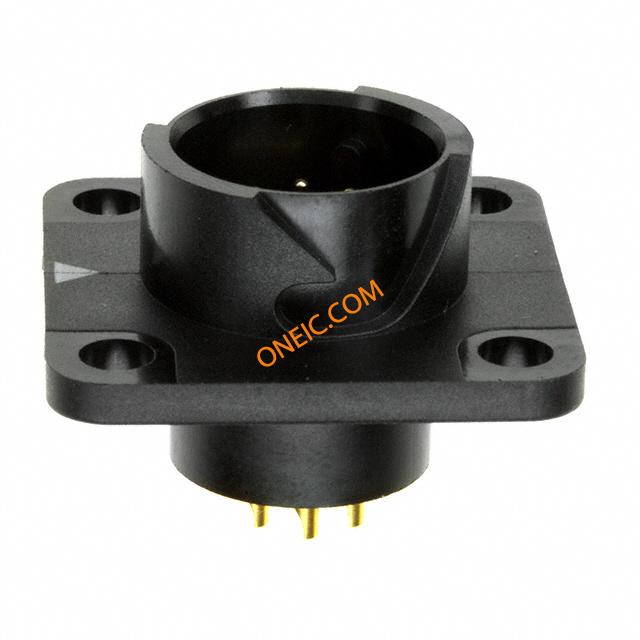

JN1AS10ML2-R
| Manufacturer | |
| Description | Standard Circular Connector 10p Panel mnt recep solder BLK CONN RCPT WATERPRF 10POS SLD PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PIN AWG22 BLACK AU |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 30 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage Rating | 200VAC | Current Rating (Max) | 3A |
Mechanical
| Packaging | Tray | Orientation | N (Normal) |
| Shell Style | Receptacle | Termination | Solder Cup |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Twist |
| Package / Case | JN1 | Primary Material | Sealed |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | S | Shell Material, Finish | Synthetic Resin |
Product Info
| Series | JN1 / JN2 | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -20°C ~ 125°C |
