点击放大查看

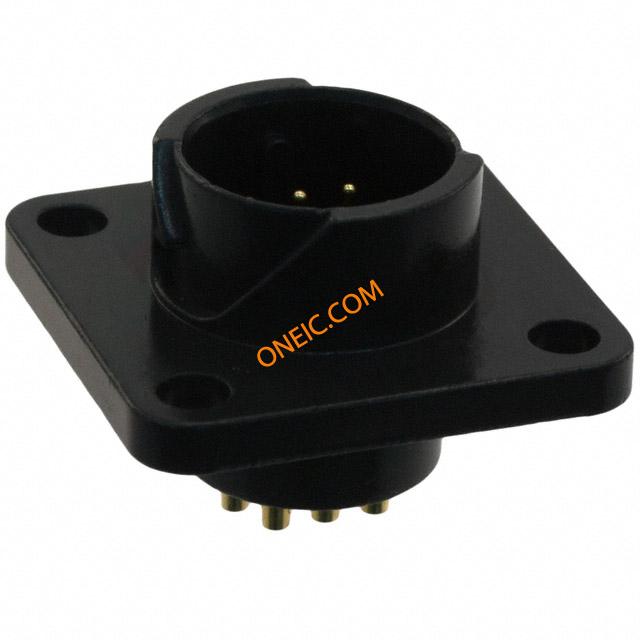

JN2AS10ML1-R
| Manufacturer | |
| Description | Standard Circular Connector 10 POS. GOLD RECPT. PNL/MNT SOLDER/TERM CONN RCPT 10POS PIN W/SOLDER RCPTCIRC10POSPNLMNT |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 35 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 200VAC | Current Rating (Max) | 3A |
Mechanical
| Packaging | Bulk | Wire Gauge | 22 |
| Orientation | N (Normal) | Shell Style | Receptacle |
| Termination | Solder Cup | Mounting Type | Panel Mount, Flange |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Twist | Primary Material | Sealed |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | S | Shell Material, Finish | Zinc, Zinc Plated |
Product Info
| Type | PanelPlug | Series | JN1 / JN2 |
| Manufacturer | JN2Series | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | ||
