点击放大查看

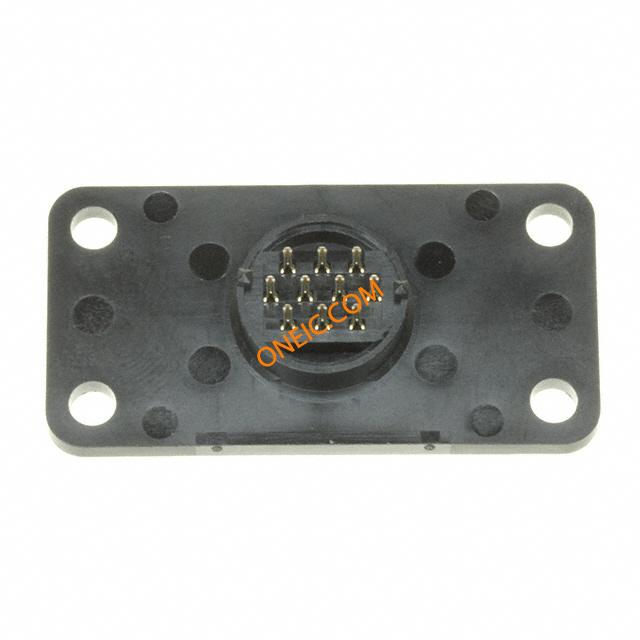

JN1AS10UL1
| Manufacturer | |
| Description | Standard Circular Connector 10P RECPT PANEL MT CONN RCPT WATERPRF 10POS T/H PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PANEL MOUNT RECEPT |
| Category |
Business
| Other Names | 670-1056 | Product Category | Standard Circular Connector |
| Standard Package | 50 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage Rating | 200VAC | Current Rating (Max) | 3A |
Mechanical
| Packaging | Tray | Orientation | N (Normal) |
| Shell Style | Receptacle | Termination | Solder |
| Mounting Type | Panel Mount, Flange | Shell Plating | Copper |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Twist | Package / Case | JN1 |
| Primary Material | Sealed | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | S |
| Shell Material, Finish | Synthetic Resin | ||
Product Info
| Series | JN1 / JN2 | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -20°C ~ 125°C |
