点击放大查看

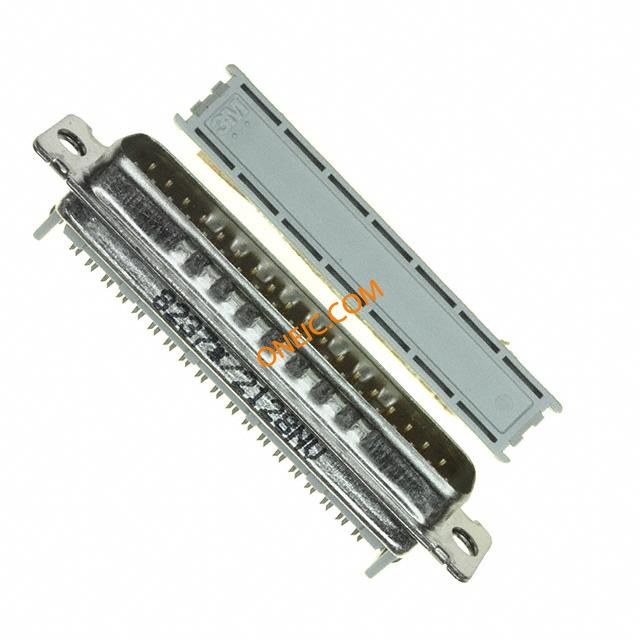

8237-6000
| Manufacturer | |
| Description | Conn D-Subminiature PIN 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors 37P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 37POS IDC GOLD D-Sub Connector; Plug; Copper Alloy; Gray; Glass Filled Polyester; Steel; Tin D-SubConnector;Plug;CopperAlloy;Gray;GlassFilledPolyester;Steel;Tin |
| Category |
Business
| Part # Aliases | 00189587066 DE610012218 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | cUL,UL |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Pitch | 2.76 mm |
| Weight | 10.262 lbs | Packaging | Tray |
| Wire Gauge | 28-26 | Termination | IDT |
| Contact Type | Signal | Mounting Type | Cable Mount |
| Shell Plating | Tin | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Housing Finish | Tin |
| Mounting Style | Wire | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Primary Material | D-Subminiature | Number of Contacts | 37 |
| Dielectric Material | PBT | Number of Positions | 37 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 4 (DC, C) | ||
Product Info
| Type | D-Subminiature | Gender | PIN |
| Series | 8200 | Features | Feed Through, Grounding Indents |
| Manufacturer | 8200 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
