8337-6009
| Manufacturer | |
| Description | Conn D-Subminiature SKT 37 POS 2.74mm IDT RA Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors DELTA 37 F N Socket Connector CONN D-SUB RCPT 37POS IDC GOLD 37 way IDC class 2 metal shell D socket Conn D-Subminiature SKT 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port SOCKET, DSUB, IDC, CRIMP, 37WAY IDC,DCABLESKT37WAY D-sub socket 37P, 8337-6009, 3M 3M 8300 系列 2.74mm 节距 37 路 IDC D-sub 连接器, 插座, 钢外壳 |
| Category |
Business
| Part # Aliases | 04671903129 DE610012887 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| Rad Hardened | No | RoHS Compliance | Yes |
Electrical
| Range deg/s | :3M - 8300 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Depth | 12.4 mm |
| Pitch | 2.74 mm | Width | 12.4mm |
| Height | 12.4 mm | Length | 69.3mm |
| Weight | 0.165 | Packaging | Bulk |
| Shell Size | :DC | Termination | IDT |
| Contact Type | Signal | Mounting Type | Cable Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Steel | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Length - Overall | 69.3 mm |
| Termination Style | IDC | Number of Contacts | 37 |
| Contact Termination | :IDC / IDT | Number of Positions | 37 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 4 (DC, C) | ||
Product Info
| Type | D-Subminiature | Gender | SKT |
| Series | 8300 | Features | Feed Through |
| Number of Ports | 1 Port | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
8237-8000
3M Electronic Solutions Division
D-Sub Standard Connectors 37P OPEN COVER PLUG UNTHREADED INSERT CONN DSUB PLUG 37POS IDC GOLD Plug,D-Sub,37Contact,OpenCover
8237-6003
3M Electronic Solutions Division
D-Sub Standard Connectors 37P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 37POS IDC GOLD D-Sub Connector; Plug; Copper Alloy; Gray; Steel; Tin; 37; 8200 Series D SUB CONNECTOR, STANDARD, 37POS, PLUG Conn;D-Sub;CablePlug;37Cnt;8200Series;Gray;CopperAlloy;26,28AWG 3M 8200 系列 1.27mm 节距 37 路 IDC D-sub 连接器, 插头, 聚碳酸酯 (PBT)外壳
3357-6237-1C
3M Electronic Specialty
D-Sub Backshells 37/METALIZED PLASTIC JS/R EMI Junction Shell, Metalized Plastic DB37 BACKSHELL EMI 37POS BACKSHELL, D, SHIELDED, 37WAY
8237-6009
3M Electronic Solutions Division
D-Sub Standard Connectors 37 CON OPN CVR RIVET CRIMP Low profile Plug Connector CONN DSUB PLUG 37POS IDC GOLD 37 way IDC class 2 metal shell D plug Conn D-Subminiature PL 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port PLUG, DSUB, IDC, CRIMP, 37WAY IDC,DCABLEPLUG37WAY D-sub plug 37P, 8237-6009, 3M 3M 8200 系列 2.76mm 节距 37 路 IDC D-sub 连接器, 插头, 钢外壳
8237-7000
3M Electronic Solutions Division
D-Sub Standard Connectors 37P CLOSD COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 37POS IDC GOLD
8237-7003
3m interconnect solutions
Conn D-Subminiature PIN 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors 37P D-SUB PLUG CONN LO-PRO CLSD CVR CONN DSUB PLUG 37POS IDC GOLD
8237-6000
3m interconnect solutions
Conn D-Subminiature PIN 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors 37P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 37POS IDC GOLD D-Sub Connector; Plug; Copper Alloy; Gray; Glass Filled Polyester; Steel; Tin D-SubConnector;Plug;CopperAlloy;Gray;GlassFilledPolyester;Steel;Tin

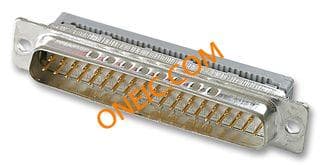

8237-8009
