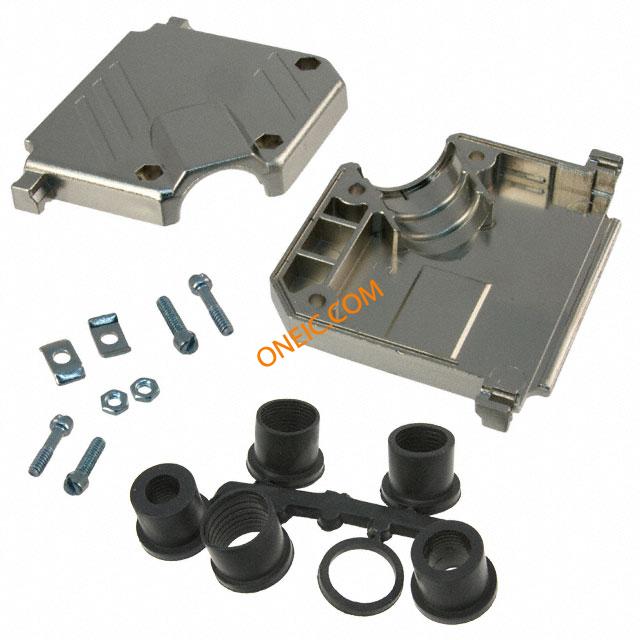

3357-6537-1C
| Manufacturer | |
| Description | D-Sub Backshells JUN.SHELL/DSUB/37POS 37P SHELL METALLISED ROUND CAB 60° EMI Junction Shell, Metalized Plastic, Corner-mount CONN D-SUB SHELL 37POS PLASTIC IDC 37W D SHELL Connector Accessories D-Sub Junction Shell Acrylonitrile Butadiene-Styrene BACKSHELL, D, SHIELDED, 37WAY IDC37WDSHELL D-Sub metallized hood 37P, 3357-6537-1C, 3M 3M 37 路 斜角 ABS D-sub 连接器底壳 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 05111164518 80400058303 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Leadfree Defin | RoHS-conform |
| Approval Agency | UL 94V-0 | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | NICKELA | ||
Mechanical
| Color | Silver | Depth | 23.11 mm |
| Width | :69.3mm | Height | 53.85 mm |
| Length | :45.7mm | Weight | 11.220 lbs |
| Plating | Nickel over Copper | Material | ABS |
| Shielding | Shielded | Cable Exit | NO |
| Cable Type | Round | Shell Size | :DC |
| Orientation | STRAIGHT | Shield Type | NO |
| Contact Type | MALE | Mounting Type | Angled |
| Shell Plating | Nickel over Copper | Cable Diameter | 16.51 mm |
| Cable End Type | 60 deg | Number of Rows | 2 |
| Screw Material | :Steel | Shell Material | Acrylonitrile Butadiene Styrene (ABS) |
| Material - Body | :ABS (Acrylonitrile Butadiene Styrene) | Housing Material | ABS |
| Length - Overall | 69.3 mm | Color - Connectors | :Nickel |
| Number of Contacts | 37 | Number of Positions | 37 |
| Number of Cable Pairs | 1 | Screw Material - Plating | :Zinc |
| Contact Material - Plating | ZINC | Diameter - Outside, Non-Expanded | :17.3mm |
Product Info
| Type | EMI/RFI Shielded Backshell | Series | 3357 |
| DELETED | Compliant | Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief | Matchcode | 335765371C |
| CAD Drawing | 3D CAD Model | Accessory Type | Two Piece Backshell |
| Standard Leadtime | 7 weeks | ||
Environmental
| Operating Temperature | -0 TO 75°C | ||
