点击放大查看

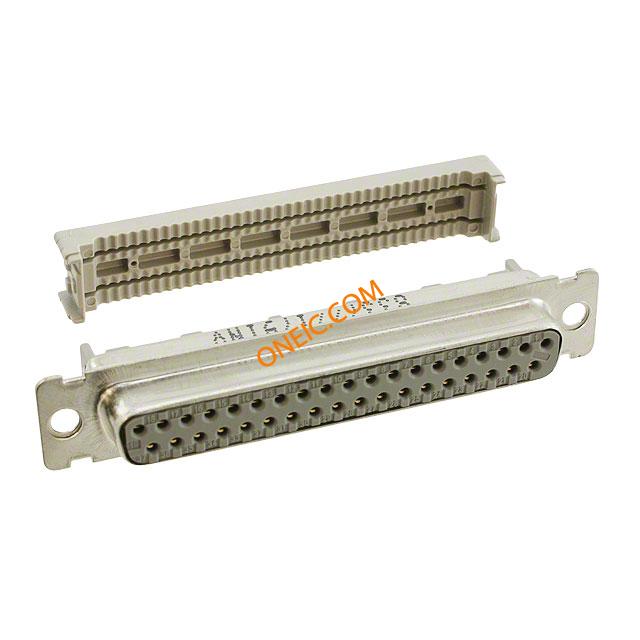

8337-8000
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P OPEN COVR SOCKET UNTHREADED INSERT CONN D-SUB RCPT 37POS IDC GOLD Connector; Socket; Copper Alloy; Nickel (Underplating); 2.74 in. Conn D-Subminiature SKT 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port Connector,Socket;CopperAlloy;Nickel(Underplating);2.74in. 3M 8300 系列 1.27mm 节距 37 路 IDC D-sub 连接器, 插座, 聚碳酸酯 (PBT)外壳 |
| Category |
Business
| Part # Aliases | DE610012895 | Product Category | D-Sub Standard Connectors |
| Standard Package | 200 | Factory Pack Quantity | 200 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Depth | 12.4mm |
| Pitch | 1.27mm | Width | 16.5mm |
| Length | 69.4mm | Packaging | Bulk |
| Orientation | 直角 | Termination | IDC, Ribbon Cable |
| Contact Type | Signal | Mounting Type | Panel Mount |
| Shell Plating | Tin | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Wire | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Length - Overall | 2.74in. | Size / Dimension | 69.4 x 16.5 x 12.4mm |
| Termination Style | IDC | Number of Contacts | 37 |
| Number of Positions | 37 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 4 (DC, C) |
Product Info
| Gender | Female | Series | 8300 |
| Features | Feed Through | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
