点击放大查看

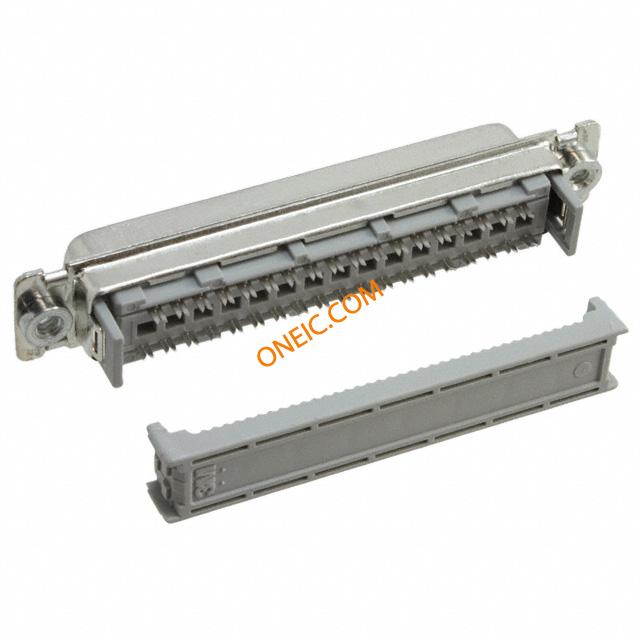

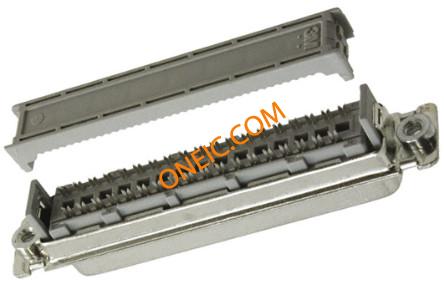

8337-6003
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P OPEN COVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 37POS IDC GOLD 3M 8300 Series 2.8mm 37 Way 2 Row Right Angle IDC D-sub Connector Cable Mount CONNECTOR;D SUBMINIATURE;SOCKET VERSION;37 CONTACTS D SUB CONNECTOR, STANDARD, 37POS, RCPT DSUB, SOCKET, IDC, 1.38MM, 37WAY Conn;D-Sub;CableSocket;37Cnt;8300Series;Gray;CopperAlloy;26,28AWG 3M 8300 系列 2.8mm 节距 37 路 电缆安装 IDC D-sub 连接器 |
| Category |
Business
| Part # Aliases | 04671903128 DE610012879 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Approval Agency | cUL,UL | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Range deg/s | :3M - 8300 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Pitch | 2.8mm |
| Weight | 5 lbs | Packaging | Tray |
| Shell Size | :DC | Wire Gauge | 28-26 |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Body Material | :Steel | Mounting Type | Panel Mount |
| Shell Plating | Tin | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Housing Finish | Tin |
| Mounting Style | Wire | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Primary Material | D-Subminiature |
| Termination Style | IDC | Number of Contacts | 37 |
| Contact Termination | :IDC / IDT | Dielectric Material | PBT |
| Number of Positions | 37 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 4 (DC, C) |
Product Info
| Type | CableSocket | Gender | Female |
| Series | 8300 | Features | Feed Through |
| Manufacturer | 8300 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
