点击放大查看

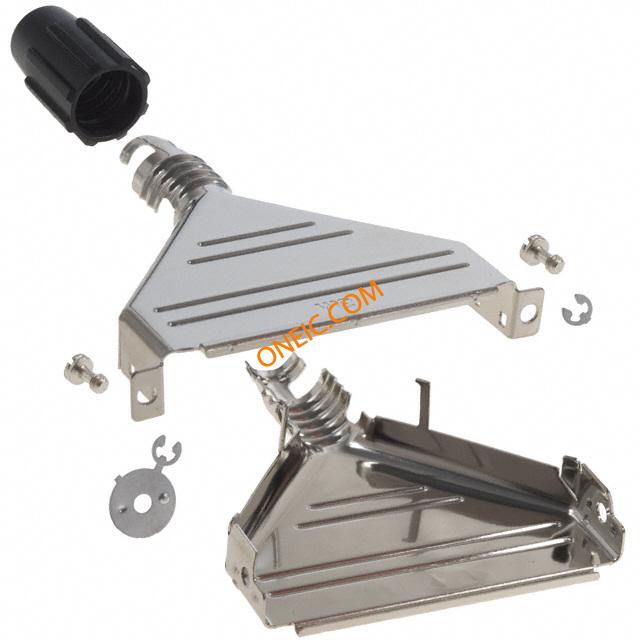

3357-9237
| Manufacturer | |
| Description | D-Sub Backshells 37P EMI JUNC SHELL METAL EMI Junction Shell, Metal, Center-mount BACKSHELL 37 POS 37 way IDC metal D backshell Connector Accessories D-Sub Junction Shell 37 POS Steel BACKSHELL, D, EMI, METAL, 37WAY Hood;D-Sub;37Pos;StraightExit;Series3357;Metal;0.120In.CblDia;EMI/ESDProtection Metal housing 37P, 3357-9237, 3M 3M 37 路 直 钢 D-sub 连接器底壳 |
| Category |
Business
| Part # Aliases | 05400737180 80610189666 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Standards | RoHSCompliant | Tariff No | 85369010 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Silver | Weight | 7.700 lbs |
| Plating | Nickel | Material | Metal, Steel |
| Shielding | Shielded | Cable Exit | 180° |
| Cable Type | Round | Shell Size | :DC |
| Thread Size | 4-40UNC | Nut Material | GlassFilledPolyester(PBT) |
| Mounting Type | Straight | Shell Plating | Nickel |
| Cable Diameter | 12 mm | Cable End Type | Straight |
| Shell Material | Steel | Material - Body | :Steel |
| Housing Material | Steel | Color - Connectors | :Silver |
| Insulation Diameter | 0.12in. | Number of Positions | 37 |
| Number of Cable Pairs | 1 | Backshell Material, Plating | Metal |
Product Info
| Type | EMI/RFI Shielded Backshell | Series | 3357 |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| Manufacturer | Series3357 | Accessory Type | Two Piece Backshell |
