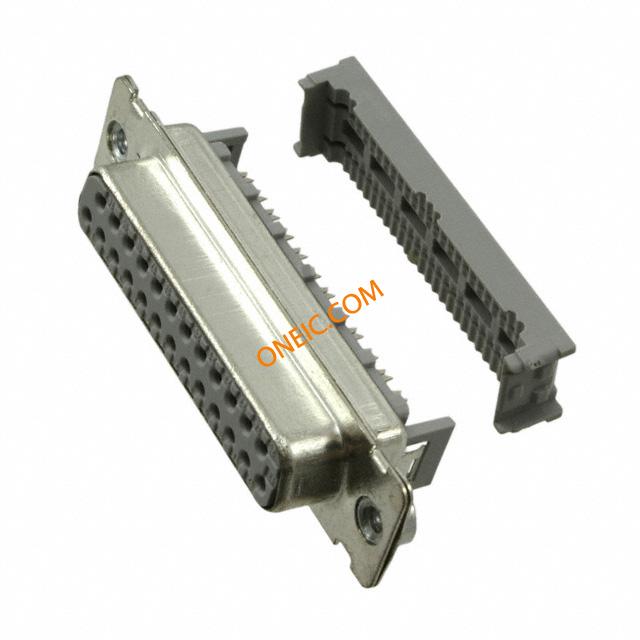

8325-7003
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P CLOSD CVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 25POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111165741 80610186324 | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Packaging | Tray |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polyester, Glass Filled | Number of Contacts | 25 |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Gender | Female | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | -55°C ~ 105°C |
