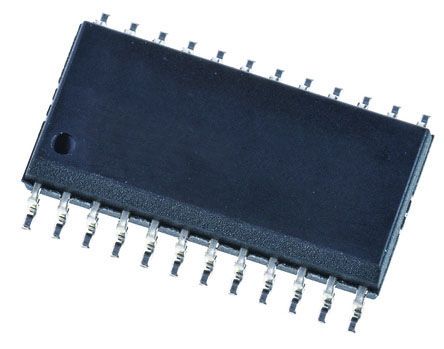

SN74LVC4245ADW
| Manufacturer | |
| Description | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC Tube Voltage Level Translator 24-Pin SOIC Tube IC BUS TRANSCEIVER 8BIT 24SOIC OCTAL BUS TRANSCEIVER, 74LVC4245 Octal Bus Transceiver And 3.3-V To 5-V Shifter With 3-State Outputs Logic IC SO-24, SN74LVC4245, SN74LVC4245ADW, Texas Instruments , 8位 非反相 总线收发器, 24针 SOIC封装 Bus Transceivers Tri-St. Octal Bus |
| Category |
Business
| Other Names | 296-8515-5 | Standard Package | Rail / Tube |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | :74LVC4245 | Rad Hardened | No |
Electrical
| Data Rate | Bi-Directional | Input Type | Voltage |
| Logic Type | LVC | Output Type | 3-State |
| Number of I/O | 5 V | Output Signal | LVCMOS |
| Number of Bits | 8 | Voltage - VCCA | 5.5 |
| Voltage - VCCB | 3.6 | Voltage Rating | 3.3/5 V |
| Current - Output | :24mA | Voltage - Output | LVTTL |
| Voltage - Supply | 2.7 V ~ 3.6 V, 4.5 V ~ 5.5 V | Number of Channels | 8 |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 2.7/4.5 V | Input Logic Level - Low | LVTTL |
| Propagation Delay (Max) | 6.3ns | Current - Quiescent (Iq) | 80 uA |
| Delay Time - Propagation | 9.8 ns | Input Logic Level - High | :2V |
| Current - Quiescent (Max) | 0.08 | Current - Output High, Low | -24 mA |
| Number of Outputs and Type | 8 | Differential - Input:Output | No/No |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 7.6(Max) | Weight | 0.000596 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :24 |
| Package / Case | 24SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 15.6(Max) |
| Package Quantity | SOIC | Number of Positions | 24 |
| Shell Size - Insert | 2.35(Max) | Supplier Device Package | 24-SOIC |
Product Info
| Series | :LVC | Process | CMOS |
| Features | W/Volt Translation | Function | Bus Transceiver with Voltage Translation |
| Polarity | Non-Inverting | Software | SCAS375I |
| Base Unit | :74 | Technology | CMOS |
| Functional Diagram | alt_scas375i.gif | Utilized IC / Part | View |
| Printed Circuit Board | 24 | Number of Inputs and Type | 1 Low/High |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
