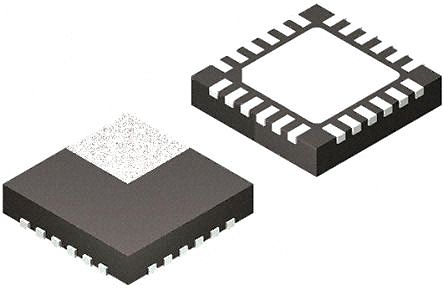

SN74LVC8T245RHLR
| Manufacturer | |
| Description | Bus XCVR Single 8-CH 3-ST 24-Pin VQFN EP T/R Voltage Level Translator 24-Pin VQFN EP T/R IC BUS TRANSCVR 8BIT 24QFN IC, 74LVC, TRANSLATOR, QFN24 8-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and Three-State Outputs Logic IC VQFN-24, SN74LVC8, SN74LVC8T245RHLR, Texas Instruments , 8位 非反相 总线收发器, 24针 VQFN封装 Translation - Voltage Levels 8-Bit Dual-Supply Bus Xcvr |
| Category |
Business
| Other Names | 296-18595-2 | Standard Package | Cut Tape |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Data Rate | Bi-Directional | Input Type | Logic |
| Logic Type | LVC | Output Type | 3-State |
| Number of I/O | 5 V | Output Signal | LVCMOS |
| Number of Bits | 8 | Voltage Rating | 1.8|2.5|3.3|5 V |
| Current - Output | :32mA | Number of Inputs | :8 |
| Voltage - Output | LVTTL | Voltage - Supply | 1.65 V ~ 5.5 V |
| Propagation Delay | :4.3ns | Number of Channels | 8 |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 100 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 1.65 V | Input Logic Level - Low | LVTTL |
| Propagation Delay (Max) | 4.2ns | Delay Time - Propagation | 32.2 ns |
| Current - Quiescent (Max) | 0.025 | Current - Output High, Low | 32 |
| Number of Outputs and Type | 8 | Differential - Input:Output | No/No |
| Propagation Delay tpLH / tpHL (Max) | 21.9 9.2 7.4 7.1 | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 3.65(Max) | Weight | 0.0002 |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :24 | Package / Case | 24VQFN EP |
| Package Cooled | VQFN EP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 5.65(Max) | Package Quantity | VQFN EP |
| Number of Positions | 24 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 24-QFN-EP (5.5x3.5) | ||
Product Info
| Series | :LVC | DELETED | Compliant |
| Process | CMOS | Features | W/Volt Translation |
| Function | Bus Transceiver with Voltage Translation | Polarity | Non-Inverting |
| Software | SCES584B | Technology | CMOS |
| Pattern Number | Y | Functional Diagram | fbd_sces584b.gif |
| RF Family/Standard | LVC | Utilized IC / Part | View |
| Printed Circuit Board | 24 | Number of Inputs and Type | 1 Low/High |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
