MSP430F1611IPM
| Manufacturer | |
| Description | MCU 16-Bit MSP430 RISC 48KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 48KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 48KB FLASH 64LQFP MSP430F1611IPM, 16 bit Microcontroller MSP430 8MHz 48kb Flash, 10kb RAM, I2C SPI 64-Pin LQFP IC, MICROCONTROLLER, 16BIT, SMD Microcontroller; Flash:48kB; RAM:10kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 48kB Flash, 10240B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B, 48 kB ROM 闪存, 10 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr |
| Category |
Business
| Other Names | 296-17205 | Standard Package | Trays |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Approval Agency | No |
| Security Features | N/A | ||
Electrical
| GPIO | 48 | Speed | 8 MHz |
| Timer | 2 x 16 bit | Memory | 3 |
| RAM Size | 10 KB | Core Size | 16-Bit |
| Core Type | MSP430 | Frequency | 8MHz |
| Interface | I2C/JTAG/SPI/UART/USART | Clock Rate | 8 |
| Comparator | Yes | Delay Time | 6 |
| Resolution | 16bit | Memory Size | :10KB |
| Number of I/O | 48 | Counter/Timers | 2 |
| Number of Bits | 12 | Voltage Rating | 1.8 → 3.6 V |
| Watchdog Timer | 1 | Clock Frequency | :8MHz |
| Data Converters | A/D 8x12b, D/A 2x12b | Frequency - Max | 8MHz |
| Number of DAC's | 2 | Oscillator Type | Internal |
| Serial Protocol | 2 | Voltage - Supply | 3.3 V |
| Resolution (Bits) | 12bit | Serial Interfaces | 2 |
| Number of Channels | 0 | Analog Input:Output | ADC12 - 8ch |
| Non-Volatile Memory | 48 | Program Memory Size | 48 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 8 |
| Voltage - Input (Min) | 1.8 | Voltage - Supply (Min) | 3.6 |
| Frequency (Center/Band) | 16bit | Power - Average Forward | 1.1 |
| Number of Bits per Element | 12 | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Mechanical
| Width | 10.2mm | Height | 1.45mm |
| Length | 10.2mm | Weight | 0.0001 |
| Packaging | Tray | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :64 | Package / Case | 64LQFP |
| Package Cooled | LQFP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 10.2(Max) | Package Quantity | LQFP |
| Size / Dimension | 10.2 x 10.2 x 1.45mm | Number of Positions | 64 |
| Shell Size - Insert | 1.45(Max) | Number of Cores/Bus Width | 16 Bit |
| Pulse Width Distortion (Max) | 3 x 16 bit, 3/7 x 16 bit | ||
Product Info
| SPI | 2 | Spg | 160 |
| USB | 0 | Type | microcontroller |
| Features | Watchdog Temp Sensor Brown Out Reset | Protocol | 1 |
| Software | SLAS368G | Bootloader | UART |
| Flash Size | :48KB | Multiplier | 16x16 |
| On-Chip RAM | 8-chx12-bit | Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Special I/O | N/A | Architecture | RISC |
| Connectivity | I²C, SPI, UART/USART | Number of Units | 1 |
| Number of Timers | 2 | Controller Series | :MSP430F1xx |
| Functional Diagram | fbd_slas368g.gif | RF Family/Standard | MSP430 |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Printed Circuit Board | 64 | Number of A/D Converters | :8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
MSP430F1611IPM
texas instruments
MCU 16-Bit MSP430 RISC 48KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 48KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 48KB FLASH 64LQFP MSP430F1611IPM, 16 bit Microcontroller MSP430 8MHz 48kb Flash, 10kb RAM, I2C SPI 64-Pin LQFP IC, MICROCONTROLLER, 16BIT, SMD Microcontroller; Flash:48kB; RAM:10kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 48kB Flash, 10240B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B, 48 kB ROM 闪存, 10 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
%2CTO-226_straightlead.jpg&w=3840&q=75)
MCP111-195I/TO
Microchip Technology Inc.
. MCP111-195I/TO - Supervisor Open Drain or Open Collector 1 Channel TO-92-3 from Microchip Technology. from now!
RE471
Roth Elektronik

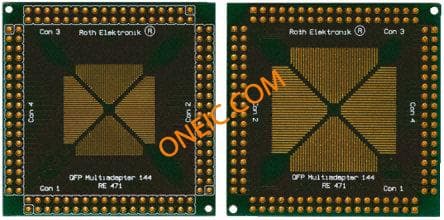

RE471, Double Sided Matrix Board FR4 With 1mm Holes 2.54 x 2.54mm Pitch, 57.2 x 57.2 x 1.5mm MULTIADAPTOR, SMD, FR4, 24-144PIN QFPSMDmulti-adaptor144,FR4RE47 Board: universal; multiadapter; W:57.2mm; L:57.2mm Laboratory card FR4 Epoxide + chem. Ni/Au, RE471, Roth Elektronik
