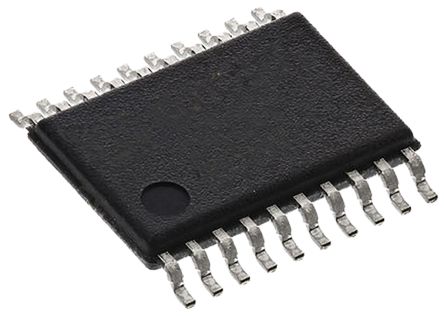

点击放大查看
SN74LVC245APW
| Manufacturer | |
| Description | Bus XCVR Single 8-CH 3-ST 20-Pin TSSOP Tube IC BUS TRANSCEIVER 8BIT 20TSSOP Bus Transceivers Octal Bus Trnscvr With 3-State Outputs Octal Bus Transceiver With 3-State Outputs Logic IC TSSOP-20, SN74LVC245, SN74LVC245APW, Texas Instruments , 8位 非反相 总线收发器, 20针 TSSOP封装 |
| Category |
Business
| Product | Standard Transceiver | Product Category | Bus Transceivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 70 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 1.8 2.5 2.7 3.3 | Data Rate | Bi-Directional |
| Input Type | TTL/CMOS | Logic Type | LVC |
| Output Type | 3-State | Number of I/O | 5 V |
| Output Signal | LVCMOS | Number of Bits | 8 |
| Voltage Rating | 1.8|2.5|3.3 V | Current - Output | 10 uA |
| Current - Supply | 10 uA | Voltage - Output | LVTTL |
| Voltage - Supply | 1.65 V ~ 3.6 V | Number of Channels | 8 |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 100 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 1.65 V | Input Logic Level - Low | LVTTL |
| Propagation Delay (Max) | 50pF | Delay Time - Propagation | 6.5 ns |
| Input Logic Level - High | LVTTL|TTL | Current - Quiescent (Max) | 0.03 |
| Current - Output 1 (Range) | 24mA | Current - Output 2 (Range) | -24mA |
| Current - Output High, Low | 24mA, 24mA | Number of Bits per Element | 8 |
| Current - Output Source/Sink | -24/24 | Propagation Delay tpLH / tpHL (Max) | 12.7 8.3 7.3 6.3 |
Mechanical
| Width | 4.4mm | Height | 1.15mm |
| Length | 6.5mm | Weight | 0.002716 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 20 | Package / Case | 20TSSOP |
| Package Cooled | TSSOP | Length - Overall | 6.6(Max) |
| Package Quantity | TSSOP | Size / Dimension | 6.5 x 4.4 x 1.15mm |
| Number of Positions | 20 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 20-TSSOP | Pulse Width Distortion (Max) | 7.1 ns @ 2.7 V |
Product Info
| Series | SN74LVC245A | DELETED | Compliant |
| Process | CMOS | Function | Bus Transceiver |
| Polarity | Non-Inverting | Software | SCAS218X |
| Technology | CMOS | Manufacturer | Texas Instruments |
| Functional Diagram | alt_scas218x.gif | Number of Circuits | 8 |
| RF Family/Standard | LVC | Utilized IC / Part | View |
| Printed Circuit Board | 20 | Number of Inputs and Type | 1 Low/High |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40°C ~ 125°C |
