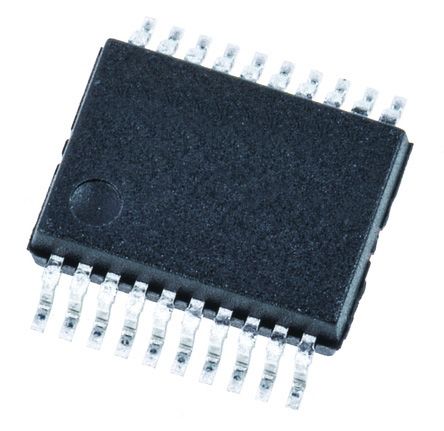

SN74LVC245ADBR
| Manufacturer | |
| Description | Bus XCVR Single 8-CH 3-ST 20-Pin SSOP T/R IC BUS TRANSCEIVER 8BIT 20SSOP Bus Transceivers Tri-State Octal Bus IC NON INVERTING BUS TRANSCEIVER SSOP-20, FULL REEL IC, 74LVC, TRANSCEIVER, SSOP20 Octal Bus Transceiver With 3-State Outputs , 8位 非反相 总线收发器, 20针 SSOP封装 |
| Category |
Business
| Other Names | 296-1231-1 | Product Category | Bus Transceivers |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 2000 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 1.8 2.5 2.7 3.3 | Data Rate | Bi-Directional |
| Input Type | TTL/CMOS | Logic Type | LVC |
| Output Type | 3-State | Number of I/O | 5 V |
| Output Signal | LVCMOS | Number of Bits | 8 |
| Voltage Rating | 1.8|2.5|3.3 V | Driver Circuitry | :Bus Transceiver |
| Voltage - Output | LVTTL | Voltage - Supply | 1.65 V ~ 3.6 V |
| Number of Channels | 8 | Number of Elements | 1 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 100 |
| Schmitt Trigger Input | No | Voltage - Supply (Min) | 1.65 V |
| Input Logic Level - Low | LVTTL | Propagation Delay (Max) | 17 |
| Delay Time - Propagation | 6.5 ns | Input Logic Level - High | LVTTL|TTL |
| Current - Quiescent (Max) | 0.03 | Current - Output High, Low | 24mA, 24mA |
| Number of Bits per Element | 8 | Current - Output Source/Sink | -24/24 |
| Propagation Delay tpLH / tpHL (Max) | 12.7 8.3 7.3 6.3 | ||
Mechanical
| Width | 5.6(Max) | Weight | 0.005527 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20SSOP | Package Cooled | SSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 7.5(Max) |
| Package Quantity | SSOP | Number of Positions | 20 |
| Shell Size - Insert | 2(Max) - 0.05(Min) | Supplier Device Package | 20-SSOP |
Product Info
| Series | SN74LVC245A | DELETED | Compliant |
| Process | CMOS | Function | Bus Transceiver |
| Polarity | Non-Inverting | Software | SCAS218X |
| Technology | CMOS | Functional Diagram | alt_scas218x.gif |
| Number of Circuits | 8 | RF Family/Standard | LVC |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
| Number of Inputs and Type | 1 Low/High | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40°C ~ 125°C |
Documents & Media
Similar Parts
SN74LVC245APWR
texas instruments
Bus XCVR Single 8-CH 3-ST 20-Pin TSSOP T/R IC BUS TRANSCEIVER 8BIT 20TSSOP Bus Transceivers Tri-State Octal Bus IC, 74LVC, SMD, 74LVC245, TSSOP20 Octal Bus Transceiver With 3-State Outputs Logic IC TSSOP-20, SN74LVC245, SN74LVC245APWR, Texas Instruments , 8位 非反相 总线收发器, 20针 TSSOP封装
SN74LVC4245ADW
texas instruments
Bus XCVR Single 8-CH 3-ST 24-Pin SOIC Tube Voltage Level Translator 24-Pin SOIC Tube IC BUS TRANSCEIVER 8BIT 24SOIC OCTAL BUS TRANSCEIVER, 74LVC4245 Octal Bus Transceiver And 3.3-V To 5-V Shifter With 3-State Outputs Logic IC SO-24, SN74LVC4245, SN74LVC4245ADW, Texas Instruments , 8位 非反相 总线收发器, 24针 SOIC封装 Bus Transceivers Tri-St. Octal Bus
SN74LVC245APW
texas instruments
Bus XCVR Single 8-CH 3-ST 20-Pin TSSOP Tube IC BUS TRANSCEIVER 8BIT 20TSSOP Bus Transceivers Octal Bus Trnscvr With 3-State Outputs Octal Bus Transceiver With 3-State Outputs Logic IC TSSOP-20, SN74LVC245, SN74LVC245APW, Texas Instruments , 8位 非反相 总线收发器, 20针 TSSOP封装

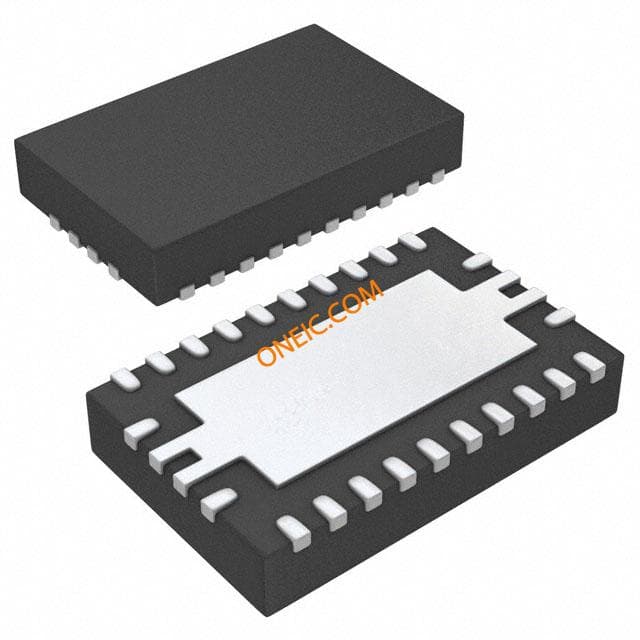

SN74LVC8T245RHLR
