828430-7
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 14PS STR DL AU Headers & Wire Housings 2X 7P MOD2 STIFTLEI 2X 7P AMPMODU II STIFTLEI |
| Category |
Business
| Tradename | AMPMODU | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Current Rating (Max) | 5 | Voltage - Protection Rating (VPR) | 1000 V |
Mechanical
| Color | Green | Pitch | 2.54 mm |
| Base Type | 不带 | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 绿色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| 1st Connector | No | 2nd Connector | Without |
| Mounting Type | Vertical | Connector Type | Breakaway |
| Contact Finish | Gold Over Nickel | Mounting Style | 标准 |
| Number of Rows | 2 | Insert Material | CuZn, 黄铜 |
| Profile (W x H) | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic Polyester | Mounting Feature | Without |
| Package Quantity | 500 | Panel Mount Type | Without |
| Termination Style | Through Hole | 1st Connector Type | 分离 |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .63 mm [ .024 in ] |
| Number of Contacts | 14 | Termination Finish | 不带 |
| Number of Positions | 14 | Length - Post (Mating) | 5.9 mm |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 5.90 [0.232] |
| Surface Mount Land Size | No | Termination Post Length | 2.65 [0.104] |
| Contact Finish Thickness | 31.5µin (0.80µm) | Static Discharge Shielding | 不带 |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Note | Headers are side-to-side stackable. | Type | Unshrouded Header |
| Gender | HDR | Series | AMPMODU MOD II |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Header | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | -65 – 105 | Operating Temperature - Junction | 否 |
Documents & Media
Similar Parts
102398-5
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings HSG DUAL 14P 26-22 .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 14POS .100 IDC GOLD Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 14Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 AMPMODU MT ASSY DR .100CL
104482-6
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 14 POS NON-POLARIZED Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 SHORT PT RCPT HSG DR .100CL
535598-1
te connectivity / amp
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 14 MODIV VRT DR CE RCPT ASSY .100 inch AMPMODU Receptacles CONN RCPT 14POS .100 DUAL T/H AU .100 inch AMPMODU Receptacles Product Highlights:ReceptacleMod IVNumber of Positions = 14Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODIV VRT DR CE RCPT ASSY
104483-9
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 14 POS POLARIZED Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14 SHORT PT RCPT HSG DR .100CL
147100-5
te connectivity / amp
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 14POS DUAL VERT T/H
102393-5
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 14POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 14P 30-26 Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 AMPMODU MT ASSY DR .100CL
147424-7
te connectivity / amp
Conn Socket Strip RCP 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 14POS DUAL STR GOLD Headers & Wire Housings 14 MODII VRT DR CE .100 X .100 14 MODII VRT DR CE .100 X .100 14 MODII VRT DR CE .100 X .100 Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
5-102393-5
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 14POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 14P 30-26 Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 AMPMODU MT ASSY DR.100CL SN

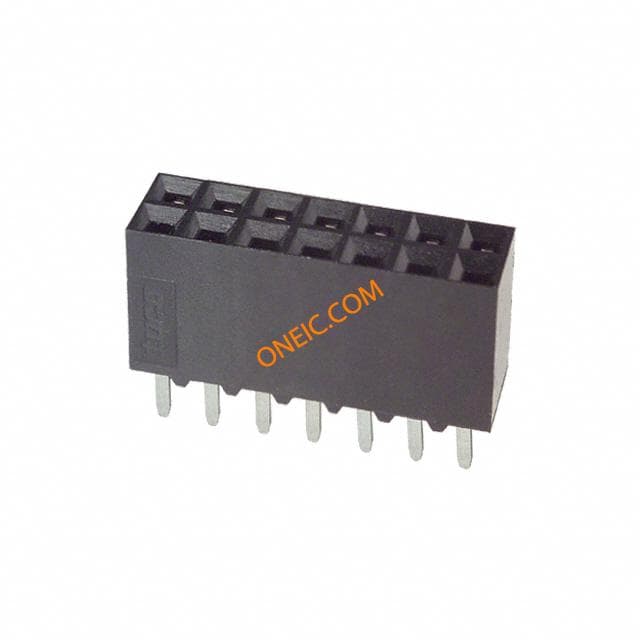

534206-7
te connectivity / amp
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 VERT DUAL Headers & Wire Housings REC 2X07P VRT T/H 1920 Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 14Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,14MODIIVRTDRCE100/115 14 MODII VRT DR CE 100/115
535585-7
te connectivity / amp
Conn Socket Strip RCP 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings 14 MODIV VRT DR CE RCPT ASSY .100 inch AMPMODU Receptacles CONN RCPT 14POS DUAL VERT .100 14 MODIV VRT DR CE RCPT ASSY 14 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
1-535512-7
te connectivity / amp
Conn Socket Strip SKT 14 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 RT/A DUAL Headers & Wire Housings MODII HORIZ 14P 1280 Conn Socket Strip SKT 14 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 14Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODII HORZ DR CE EESS .100
534267-1
te connectivity / amp
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 VERT DUAL Headers & Wire Housings 14P MODIV RECEPTACLE PCB Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 14Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODIV VRT DR OE 100/125
1-87631-0
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL Headers & Wire Housings POLARIZED HSG 14 DBL detent latching Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM MODIVHOUSING,14MODIVHSGDRMRKD.100POL 14 MODIV HSG DR MRKD .100 POL
102387-2
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings CNTR PLRZD HG 14 DBL .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL 2.54mm,housing,14W,Mod IV,DR,snap in Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 14POS, 2.54MM Housing,Connector;ModIV;Dual;14;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 14 Double row / straight / with polarization AMPMODU MOD IV, 102387-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 14 路 直 母 电缆安装 PCB 壳体 14 MODIV HSG COMP DR .100 POL

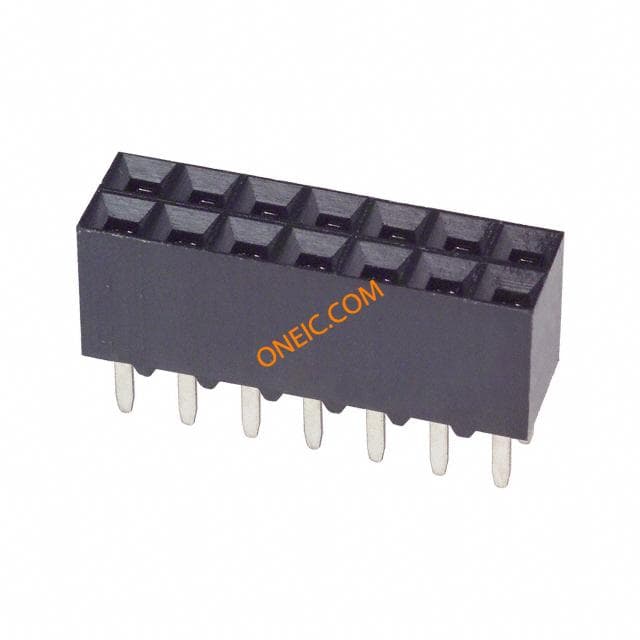

534998-7
te connectivity / amp
Conn Socket Strip RCP 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 VERT DUAL Headers & Wire Housings RECEPT 14 POS DUAL 1920 Conn Socket Strip RCP 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorMod IV14 PositionsNumber of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, ReceptacleAssembly;GlassFilledPolyester;PhosphorBronze;Vertical;14;2A 14 MODIV VRT DR CE 100/125

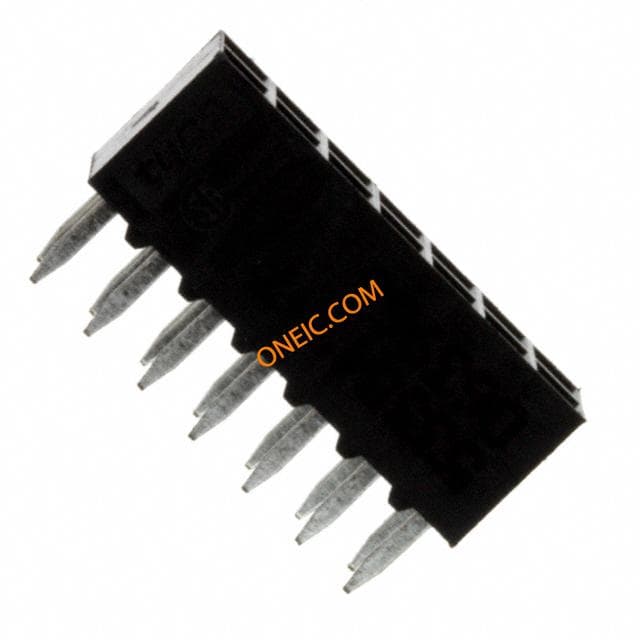

535542-7
te connectivity / amp
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 VERT DUAL Headers & Wire Housings RECEPT 14 POS DUAL 1920 Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 14Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODIV VRT DR CE 100/130
1-86177-4
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 DUAL ROW Headers & Wire Housings 14 HSG COMP DR .100CL Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MODIV HSG COMP DR .100CL
1-146762-2
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE CONN RCPT 14POS DUAL VERT TIN

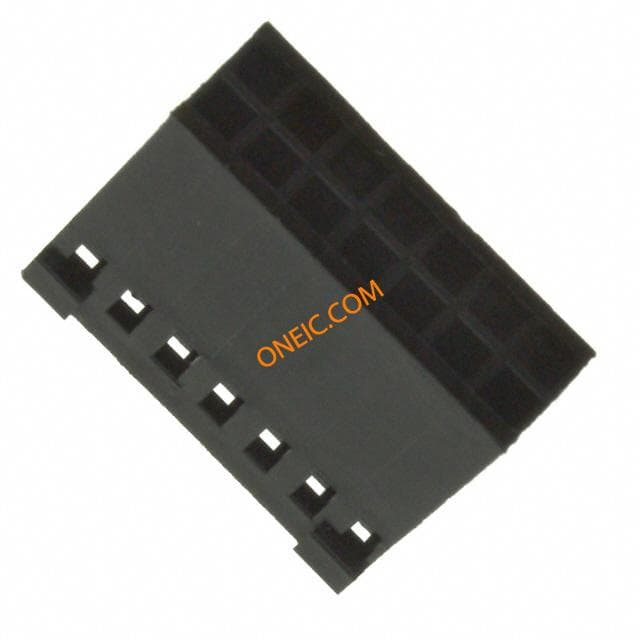

3-87977-2
