535598-1
| Manufacturer | |
| Description | Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 14 MODIV VRT DR CE RCPT ASSY .100 inch AMPMODU Receptacles CONN RCPT 14POS .100 DUAL T/H AU .100 inch AMPMODU Receptacles Product Highlights:ReceptacleMod IVNumber of Positions = 14Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODIV VRT DR CE RCPT ASSY |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 32 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
Compliance
| RoHS | No | MIL-C-55032 | 否 |
| Standard Number | CSA LR7189, UL E28476 | Material Flammability Rating | UL 94V-0 |
Electrical
| Contact Resistance | 12 | Resistance - Input | 5000 |
| Voltage - Clamping | 750 | Voltage - Rated AC | 333 |
| Current Rating (Max) | 2 A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 5.03 mm [ .198 in ] | Packaging | Tube |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Vertical | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole - Solder |
| Number of Rows | 2 | Pressure (PSI) | 标准 |
| Terminal Style | 短点 | Connector Usage | 闭合入口, 顶部 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Package Quantity | 32 |
| Panel Mount Type | 通孔 - 焊接 | Termination Style | Solder Pin |
| Number of Contacts | 14 | Contact Tail Length | 3.18 |
| Number of Positions | 14 | Bushing, Grommet Type | 不带 |
| Compatible Shell Size | 与接头配合 | Termination Post Length | 3.18 mm [ .125 in ] |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Note | TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。 | Type | Socket Strip |
| Gender | SKT | Series | AMPMODU MOD IV |
| Sealable | 否 | Stackable | 是 |
| Product Type | Receptacles / Sockets - PCB | Assembly Configuration | 板支座 |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 否 | Operating Temperature | - 65 C to + 105 C |
| Thermal Resistance of Package | 1.57 mm [ .062 in ] | ||
Documents & Media
Similar Parts
104355-7
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS R/A DUAL
5-102618-5
te connectivity / amp

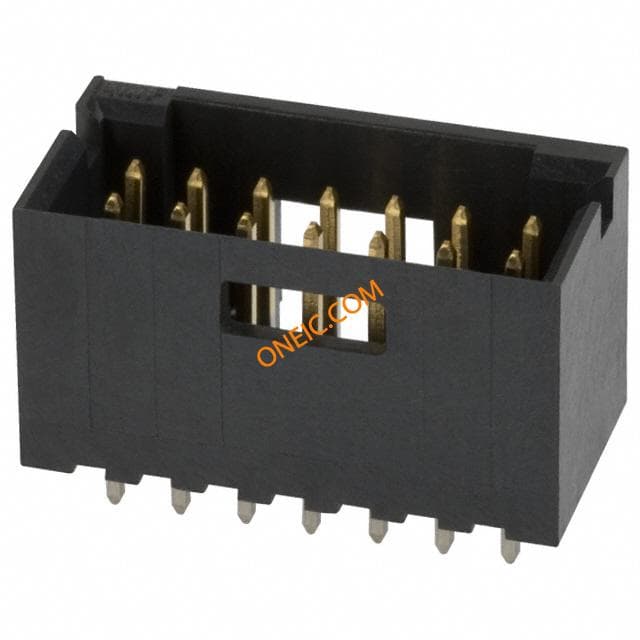

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 14POS 15AU Headers & Wire Housings HDR 2X07P VRT T/H Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 14Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SHRD .100CL
