104483-9
| Manufacturer | |
| Description | Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 14 POS POLARIZED Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14 SHORT PT RCPT HSG DR .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 300 VAC | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 300VAC | ||
Mechanical
| Color | Black | Depth | 12.7 mm |
| Pitch | 2.54 mm | Height | 7.56 mm |
| Weight | 0 | Packaging | Bulk |
| Wire Gauge | 20-32 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | :- | Mounting Style | Wire |
| Number of Rows | 2 | Contact Material | :- |
| Housing Material | Thermoplastic | Length - Overall | 17.72 mm |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 14 | Contact Termination | Crimp |
| Number of Positions | 14 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Features | Polarizing Key | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
104355-7
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS R/A DUAL
104351-7
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL 15AU Headers & Wire Housings 14 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A W/HD
146130-6
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL SMD Headers & Wire Housings 14 CKT VERT SMT HDR Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SFMNT B/A
146270-7
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL .100 Headers & Wire Housings 14 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A 100 W/HD
5103310-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;14;Gold A/L LOW PRO HDR 14P RA BLACK
103311-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR R.A. DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Headerhoriz14way2.54mmAmpLatch TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 014 LOPRO HDR RA 30DP
146308-7
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL R/A

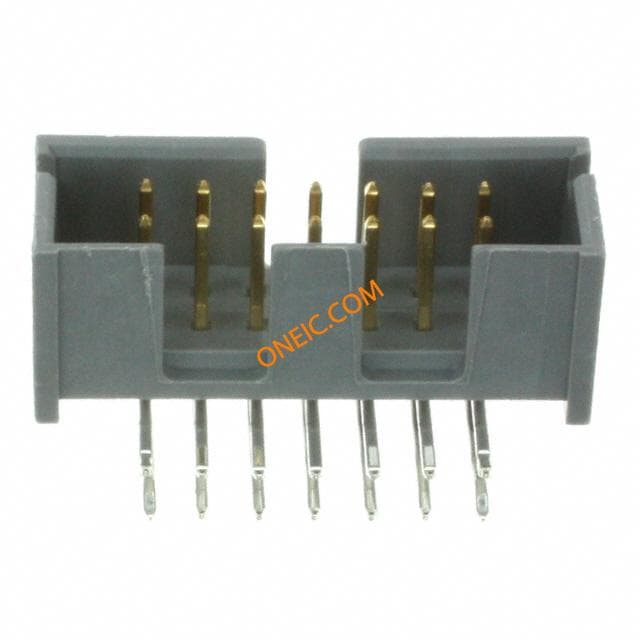

104340-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole CONN HEADER 14POS R/A .100 GOLD
828430-7
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 14PS STR DL AU Headers & Wire Housings 2X 7P MOD2 STIFTLEI 2X 7P AMPMODU II STIFTLEI
5104338-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO CONN HEADER LOPRO STR 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P VERT HT
104350-7
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL 30AU Headers & Wire Housings 14 MODII HDR DRST B/A W/HD Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A W/HD

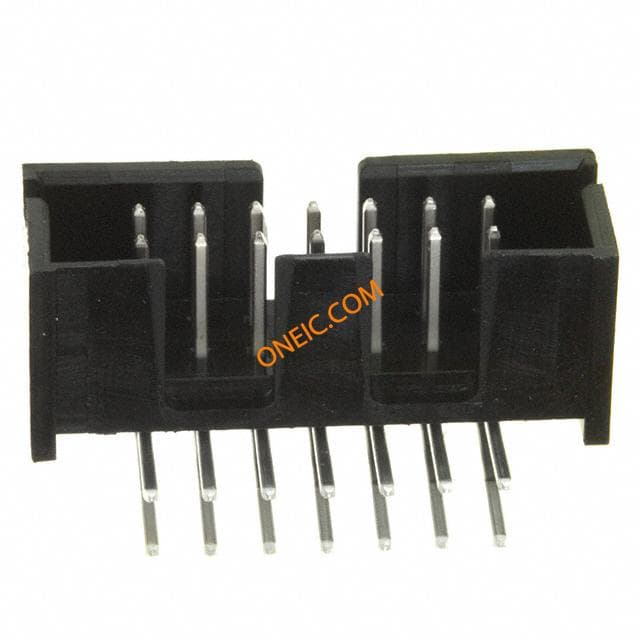

5103311-2
