102393-5

Manufacturer	TE Connectivity Ltd.
Description	Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 14POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 14P 30-26 Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 AMPMODU MT ASSY DR .100CL
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Tradename	AMPMODU	Other Names	A25795
Product Category	Headers & Wire Housings	Standard Package	Trays
Factory Pack Quantity	170

Compliance

RoHS	Contains lead / RoHS non-compliant	Standard Number	CSA LR7189, UL E28476
Material Flammability Rating	UL 94V-0

Electrical

Contact Resistance	15 mΩ	Resistance - Input	5000
Connector Impedance	刺破式压接 (IDC)	Current Rating (Max)	3 A
Voltage - Protection Rating (VPR)	600 V

Mechanical

Color	Black	Pitch	2.54 mm
Height	6.96 mm [ .24 in ]	Length	17.78 mm [ .7 in ]
Lock Type	不带	Packaging	Tray
Wire Type	Discrete or Ribbon Cable	Body Color	黑色
Wire Gauge	26-30 AWG	Row Spacing	0.100" (2.54mm)
Termination	IDT	Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Contact Finish	Gold Over Nickel	Mounting Style	Wire
Number of Rows	2	Pressure (PSI)	标准
Insert Material	磷青铜	Contact Material	Phosphor Bronze
Housing Material	Thermoplastic	Package Quantity	170
Cable Termination	IDC	Termination Style	IDC
1st Contact Gender	Socket (Female)	Number of Contacts	14
Dielectric Diameter	1.27 mm	Insulation Diameter	1.27 mm [ .05 in ]
Number of Positions	14	Mounting Hole Diameter	不带
Contact Finish Thickness	30µin (0.76µm)

Product Info

Type	IDC Connector	Gender	RCP
Series	AMPMODU MT	Features	Closed End
Product Type	Receptacles / Sockets - Housings	Other Specifications	是

Environmental

Temperature - Test

标准部件 - 非辉光导线

Operating Temperature

- 65 C to + 105 C

Documents & Media

Online Document

102393-5?RQPN=102393-5

Similar Parts

104355-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS R/A DUAL

Details

5-102618-5

te connectivity / amp

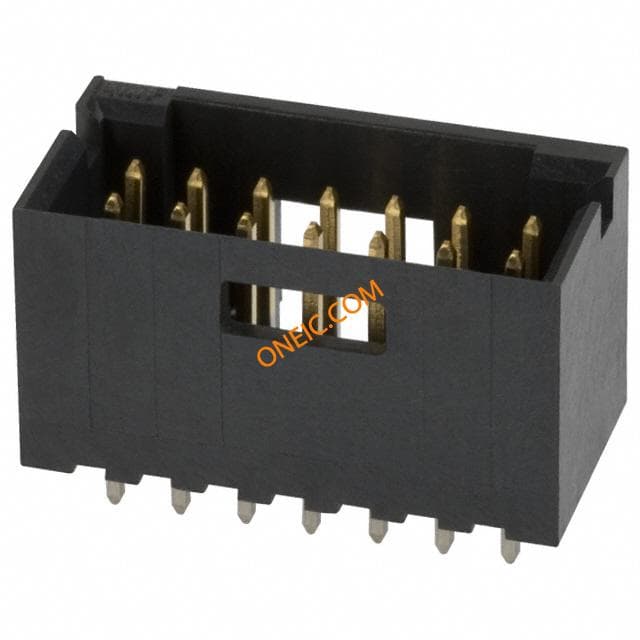

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 14POS 15AU Headers & Wire Housings HDR 2X07P VRT T/H Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 14Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SHRD .100CL
