5650870-4
| Manufacturer | |
| Description | Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB Eurocard Type R Header assembly 32+32P DIN 41612 Connectors RECPT 64P R/A TYPE R Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Housing Gender = PlugContact Gender = Receptacle64 PositionsPCB Mount Angle = Right AngleWithout PCB Mount RetentionSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 64POS 064EUROTYPERRECEPTASSY 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly |
| Category |
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 140 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Weight | 0 | Coating | Without |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Solder Post | Length - Tail | 2.79 mm |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | DIN 41612 Class 2 | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polymer |
| Make Before Break | No | Termination Style | Solder Pin |
| Mating Orientation | Without | Number of Contacts | 64 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 64 |
| Material - Insulation | Polymer Thermoplastic, Glass Filled | Termination Post Length | 2.79 [0.110] |
Product Info
| Type | DIN 41612 | Grade | II |
| Style | R | Gender | Female |
| Series | 5650870 | Guide Method | Without |
| Product Type | Receptacle | Number of Positions Loaded | 64 |
Environmental
| Level, Class | 2 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts

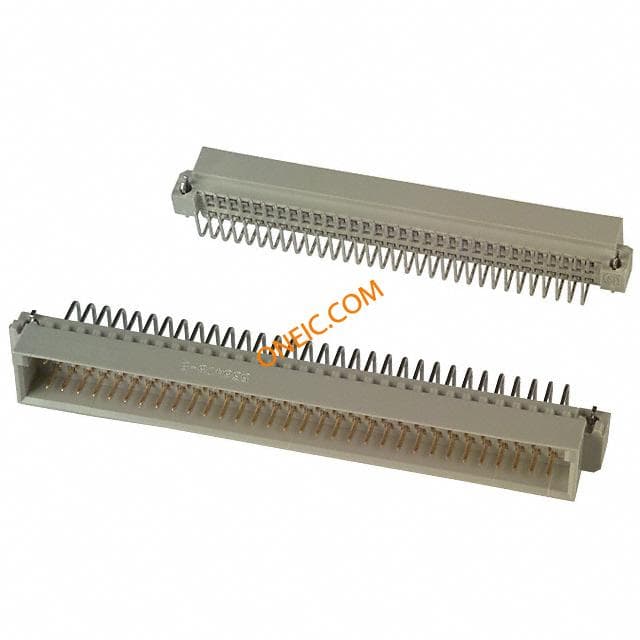

536406-5
te connectivity / amp
Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB DIN 41612 Connectors DIN PLUG 64P R/A TYPE C 064 EURO TYPE C PIN BL ASSY 064 EURO TYPE C PIN BL ASSY Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
650933-5
te connectivity / amp
Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 64POS VERT PCB DIN 41612 Connectors 64P PLUG EUROCARD 300 Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 64PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R PIN ST ASSY
650945-5
te connectivity / amp
Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB Connector Right Angle 64 way Eurocard DIN 41612 Connectors Type C Pin Header 64 Position Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;64;Polyester;Gray;PCBMount;0.104in. 64 Position 2.54 mm Right Angle Triple Row Type C Backpanel Connector Assembly TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接 064 EURO TYPE C PIN ST ASSY
650934-5
te connectivity / amp
Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 64POS VERT PCB DIN 41612 Connectors EUROCARD VER PLG 64P 300 Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 64PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R PIN ST ASSY
5650934-5
te connectivity / amp
Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 64POS VERT PCB DIN 41612 Connectors PLUG 64P VERT TYPE R Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 64PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064EUROTYPERPINSTASSY ASSY,PIN,EUROCARD,TYPE R,LEAD-
5650945-5
te connectivity / amp
Conn DIN 41612 PIN 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB 2.54mm,pin,horizontal,solder,PCB,64way DIN 41612 Connectors PLUG 64P R/A TYPE C Conn DIN 41612 PIN 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 PLUG, DIN41612, R/A, C, 64WAY CONECTOR,PLUG,EUROCARDTYPEC,64POS,ROWSAANDCLOADED Receptacle,Eurocard;Plug;Brass;64;Polyester;Gray;PCBMount;0.104in. 2.54 mm 64 Position Plug Right Angle Through Hole Eurocard Type C Connector TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE C,LEAD-
5650951-5
te connectivity / amp
Conn DIN 41612 PIN 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB Recept pcb r/a 64w 3row 2.54mm Eurocard DIN 41612 Connectors PLUG 64P R/A TYPE C Conn DIN 41612 PIN 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorPlugType = Type C64 PositionsRows Loaded = A, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptpcbr/a64w3row2.54mmEurocard Type C 64 Position 2.54 mm Plug Right Angle Through Hole Eurocard Connector TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE C,LEAD-
650951-5
te connectivity / amp
Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB DIN 41612 Connectors EUROCARD PIN 64P 900 Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 2.54 mm 64 Position Plug Right Angle Through Hole Eurocard Type C Connector 064 EURO TYPE C PIN ST ASSY
536356-5
te connectivity / amp
Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB DIN 41612 Connectors DIN PLUG 64P R/A TYPE C Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorPlugType = Type C64 PositionsRows Loaded = A, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 64 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector
650912-5
te connectivity / amp
Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 64POS VERT PCB DIN 41612 Connectors Type R Pin Header 64 P w/ Action Pin Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 64PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R PIN AP ASSY
174375-1
te connectivity / amp
Connector Accessories Receptacle Dust Cover Thermoplastic White Eurocard and RS-System Accessories IEC DUST COVER Eurocard DIN41612 C,dust cover,64,96 rcp Standard Card Edge Connectors IEC DUST COVER Connector Accessories Receptacle Dust Cover Thermoplastic White Product Highlights:Dust CoverMating Type = ReceptacleNumber of Positions = 64, 96Size = StandardUsed For Type C Connector, Used For Type R ConnectorSearch Keywords:DIN 41612, IEC 603-2, pcb connectors, board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, EurocardDIN41612C,dustcover,64,96rcp Cap IEC Dust Cover Accessory TE Connectivity

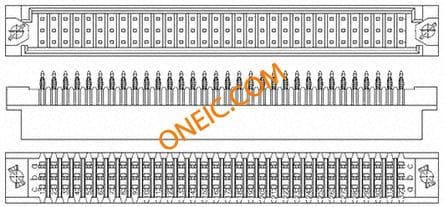

4-1393659-7
