650912-5
| Manufacturer | |
| Description | Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 64POS VERT PCB DIN 41612 Connectors Type R Pin Header 64 P w/ Action Pin Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 64PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R PIN AP ASSY |
| Category |
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 150 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Interface | Eurocard/DIN 41612 | Voltage - Supply | 250 |
| Current Rating (Max) | 1.5 | ||
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Height | 11.51 mm [ .497 in ] | Coating | Without |
| Packaging | Bulk | Shielding | 否 |
| Thickness | 2.36 [0.093] | Termination | Solder |
| Contact Type | Compliant Post | Length - Tail | 6.35 mm |
| Mounting Type | Through Hole | Terminal Size | .64 x .64 mm [ .025 x .025 in ] |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Contact Timing | 否 | Mounting Style | 带有 |
| Number of Rows | 2 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Mounting Feature | 作用/符合标准的尾 | Panel Mount Type | 通孔 - 焊接 |
| Size / Dimension | II | Make Before Break | No |
| Termination Style | Solder Pin | Mating Orientation | Without |
| Number of Contacts | 64 | Number of Positions | 64 |
| Contact Length - Post | 6.35 mm [ .248 in ] | Material - Insulation | Polyester, Glass Filled |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡铅 |
| Termination Post Length | 6.35 [0.250] | Contact Finish Thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] |
Product Info
| Type | DIN 41612 | Grade | II |
| Style | R | Series | 650912 |
| Guide Method | Without | Product Type | Plug |
| Number of Columns | 32 | Number of Positions Loaded | 64 |
Environmental
| Level, Class | 2 | Operating Temperature | -55°C ~ 125°C |
| Thermal Resistance of Package | 2.36 mm [ .093 in ] | ||
Documents & Media
Similar Parts
650956-5
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
5535059-5
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors DIN RECPT 64P VERT TYPE C Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
5650408-4
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECPT 64P VERT TYPE C Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 64 Position 3 Row 2.54 mm Pitch Eurocard Type C Vertical Receptacle Connector
536481-5
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C 064 EURO TYPE C RECEPT BL ASSY DIN 41612 Connectors 064 EURO TYPE C RECE 150 064 EURO TYPE C RECEPT BL ASSY Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
5650870-4
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB Eurocard Type R Header assembly 32+32P DIN 41612 Connectors RECPT 64P R/A TYPE R Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Housing Gender = PlugContact Gender = Receptacle64 PositionsPCB Mount Angle = Right AngleWithout PCB Mount RetentionSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 64POS 064EUROTYPERRECEPTASSY 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly
650870-5
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 64POS .100 DIN DIN 41612 Connectors Type R Receptacle 64 Position Eurocard Type R Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R RECEPT ASSY
746603-1
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount DIN 41612 Connectors 64 PIN CONN W/COVER 210 Eurocard Type C CONN RCPT 64POS 30-26AWG IDC
5535059-4
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors C REC VRT A CX32C L2 PFIT Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECEPTACLE,EURO,TYPE C,L-FREE,A&C,6

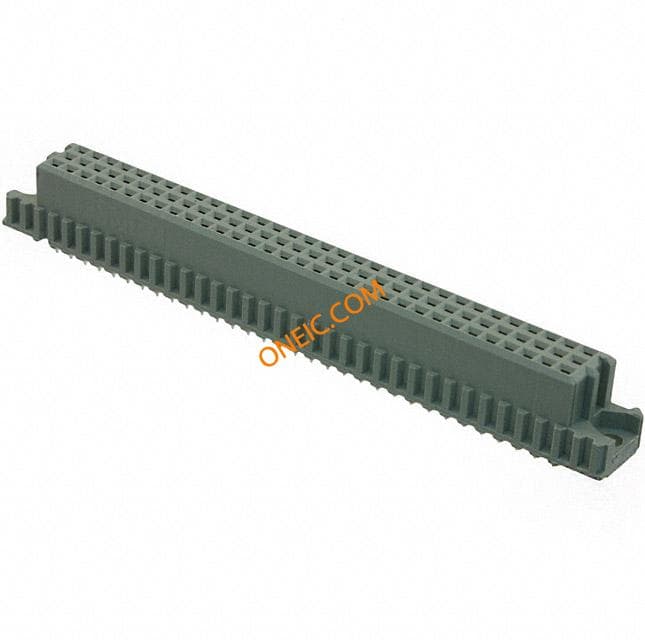

650458-5
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT 64 POS VERT DIN PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE C RECEPT ST ASSY
650408-4
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECEPTACLE 64 POS TYPE C Eurocard Type C Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
5650408-5
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSEMBLY,RECEPTACLE,EURO,TYPE
650870-4
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB DIN 41612 Connectors 064 EURO R RECEPT Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
1-148167-5
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN RCPT 64POS TYPE C VERT GRAY DIN 41612 Connectors RCPT 64P TYPE C VERT GRAY CONN DIN 064 EURO TYP C RECP 13MM ASSY

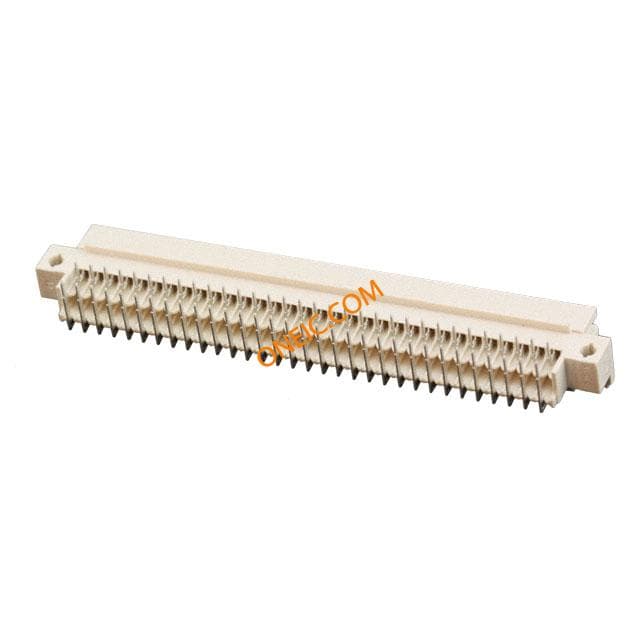

5650870-5
