点击放大查看
536356-5
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C |
| RoHSELV Compliance | ELV compliant, 5 of 6 Compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Size | Standard | Color | Gray |
| Pitch | 2.54 mm | Coating | Without |
| Packaging | Bulk | Termination | Solder |
| Contact Size | 0.64 [.025] Sq. | Contact Type | Solder Post |
| Mounting Type | Through Hole | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Polyester GF |
| Mounting Feature | With | Make Before Break | No |
| Number of Contacts | 64 | Number of Positions | 64 |
| Material - Insulation | Polyester, Glass Filled | Termination Post Length | 2.65 [0.104] |
Product Info
| Type | DIN 41612 | Grade | II |
| Style | C | Gender | Plug |
| Features | Board Lock | Guide Method | Without |
| Product Type | Type C Connectors | Connection Type | Printed Circuit Board |
| Tool Type Feature | No | Number of Positions Loaded | 64 |
Environmental
| Temperature | No | Level, Class | 2 |
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Online Document
Similar Parts
650956-5
te connectivity / amp
$22.6112
Details
166811-2
te connectivity / amp
$93.4320
Details
2-1393640-5
te connectivity / amp
$16.1500
Details
5535059-5
te connectivity / amp
$19.1760
Details
9-1393640-3
te connectivity / amp
$5.8521
Details
215913-4
te connectivity / amp
Details
3-1393641-5
te connectivity / amp
$157.8756
Details
5650408-4
te connectivity / amp
$33.8262
Details
5650870-4
te connectivity / amp
$26.7376
Details
746603-1
te connectivity / amp
$47.8108
Details
5535059-4
te connectivity / amp
$37.7820
Details
9-1393640-0
te connectivity / amp
$19.4480
Details
167257-5
te connectivity / amp
$71.0600
Details
5650408-5
te connectivity / amp
$31.5157
Details
650870-4
te connectivity / amp
$88.6400
Details
1-148167-5
te connectivity / amp
$55.0800
Details
5650956-5
te connectivity / amp
$25.5267
Details

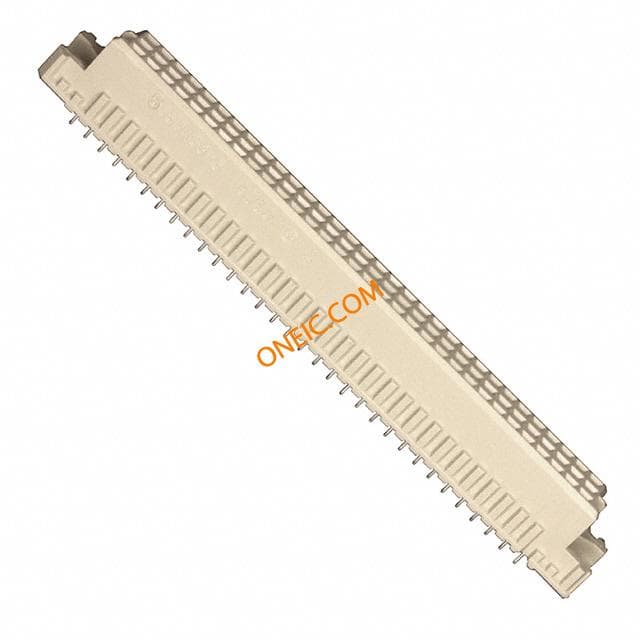

5650458-5
