650945-5
| Manufacturer | |
| Description | Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB Connector Right Angle 64 way Eurocard DIN 41612 Connectors Type C Pin Header 64 Position Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;64;Polyester;Gray;PCBMount;0.104in. 64 Position 2.54 mm Right Angle Triple Row Type C Backpanel Connector Assembly TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接 064 EURO TYPE C PIN ST ASSY |
| Category |
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | Standards | DIN41612 |
| Leadfree Defin | Wave solder capable to 240°C | Approval Agency | CSA,UL |
| RoHSELV Compliance | ELV compliant, 5 of 6 Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Interface | Eurocard/DIN 41612 | Voltage Rating | 250 V ac |
| Voltage - Supply | 250 | Contact Resistance | 15 mΩ, 50 mV |
| Current Rating (Max) | 1.5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Size | Standard | Color | Gray |
| Depth | 17.73 mm | Pitch | 2.54 mm |
| Height | 11.1 mm | Coating | Without |
| Packaging | Bulk | Shielding | 否 |
| Shell Size | C | Orientation | 直角 |
| Termination | Solder | Contact Size | 0.64 [.025] Sq. |
| Contact Type | Solder Post | Length - Pin | 0.104" |
| Housing Color | Gray | Length - Tail | 2.65 mm |
| Mounting Type | Through Hole | Terminal Size | .64 x .64 mm [ .025 x .025 in ] |
| Angle of Throw | Right | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Contact Timing | 否 |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Polyester | Length - Overall | 94 mm |
| Mounting Feature | Without | Panel Mount Type | 通孔 - 焊接 |
| Primary Material | Eurocard | Size / Dimension | II |
| Termination Rows | a/c | Make Before Break | No |
| Pin Hole Diameter | 0.1" | Termination Style | Solder Pin |
| Number of Contacts | 64 | Number of Positions | 64 |
| Contact Length - Post | 2.64 mm [ .103 in ] | Material - Insulation | Polyester, Glass Filled |
| Length - Post (Mating) | 0.104in. | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Termination Post Length | 2.65 [0.104] |
| Contact Finish Thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] | ||
Product Info
| Type | DIN 41612 | Grade | II |
| Style | C | Gender | Plug |
| Series | 650945 | Guide Method | Without |
| Manufacturer | AMPEurocardTypeC | Product Type | Type C Connectors |
| Connection Type | Printed Circuit Board | Tool Type Feature | No |
| Outlet Types and Quantity | A/c | Number of Positions Loaded | 64 |
Environmental
| Ratings | C2 | Temperature | No |
| Level, Class | 2 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
650956-5
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
2-1393640-5
te connectivity / amp
Conn DIN 41612 SKT 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C V42254B2102C963=PC612 FEDERLEI V42254B2102C963=PC612 FEDERLEI Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
5535059-5
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors DIN RECPT 64P VERT TYPE C Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
9-1393640-3
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RCPT 64POS VERT SOLDER T/H 2.54mm,rcpt,DIN41612,solder,PCB,vert,64w DIN 41612 Connectors RCPT 64P VT TYPE C Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, STRAIGHT, C, 64WAY Multipole socket C 64-p DIN 41612 2 2 x 32 a + c, 9-1393640-3, TE Connectivity TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 焊接端接 V42254B2201C963=PC612 FEDERLEI
215913-4
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C 64P.IEC-C FEM.CONN
3-1393641-5
te connectivity / amp
Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONN DIN TE Connectivity Eurocard 系列 96 路 2.54mm 节距, 3 行 直向 DIN 41612 插座, 焊接端接 V42254B2202C963=PC612 FEDERLEI
5650408-4
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECPT 64P VERT TYPE C Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 64 Position 3 Row 2.54 mm Pitch Eurocard Type C Vertical Receptacle Connector
5650870-4
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB Eurocard Type R Header assembly 32+32P DIN 41612 Connectors RECPT 64P R/A TYPE R Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Housing Gender = PlugContact Gender = Receptacle64 PositionsPCB Mount Angle = Right AngleWithout PCB Mount RetentionSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 64POS 064EUROTYPERRECEPTASSY 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly
746603-1
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount DIN 41612 Connectors 64 PIN CONN W/COVER 210 Eurocard Type C CONN RCPT 64POS 30-26AWG IDC
5535059-4
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors C REC VRT A CX32C L2 PFIT Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECEPTACLE,EURO,TYPE C,L-FREE,A&C,6
9-1393640-0
te connectivity / amp
Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C DIN 41612 Connectors V42254B2201C913 PC612 FEDERLEI Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 V42254B2201C913=PC612 FEDERLEI
167257-5
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm IDT ST Panel Mount Eurocard Type C 3X32P MT TAN BU ST Headers & Wire Housings 3X32P MT TAN BU ST Conn DIN 41612 RCP 64 POS 2.54mm IDT ST Panel Mount Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
5650408-5
te connectivity / amp
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSEMBLY,RECEPTACLE,EURO,TYPE
650870-4
te connectivity / amp
Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB DIN 41612 Connectors 064 EURO R RECEPT Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

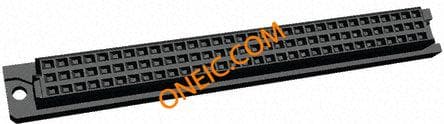

746603-4
