点击放大查看
5-5223955-2
| Manufacturer | |
| Description | Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS VERT GOLD TE Connectivity Z-PACK HS3 Series 3 Way Straight PCB Socket Through Hole Board to Board Hard Metric Connectors REC 1X003P VRT HC B-PLANE UPME Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 3PCB Mount Angle = VerticalNot KeyedTin Solder Tail Contact PlatingSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UPMRECPT,HICURRENT 3 Position Straight Socket Receptacle Solder Through Hole Connector TE Connectivity Z-PACK HM 系列 3路 直 通孔 印刷电路板插座, 板对板 UPM RECPT, HI CURRENT |
| Category |
Business
| Other Names | 552239552 | Product Category | Hard Metric Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 1.15A |
Mechanical
| Color | Gray | Pitch | 3 mm |
| Height | 24.63 mm | Packaging | Tube |
| Termination | Solder | Contact Type | Compliant Post |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Blade Sockets | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Connector Style | Blade Power | Connector Usage | Backplane |
| Contact Material | High Conductivity Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |
| Length - Overall | 12 mm | Number of Contacts | 3 |
| Number of Positions | 3 | Contact Layout, Typical | 3 Power |
| Contact Finish Thickness | 3µin (0.08µm) | ||
Product Info
| Note | Contact area lubricated with Bellcore approved lubricant. | Type | Power |
| Gender | RCP | Series | Z-PACK HS3 |
| Coded, Keyed | No | Product Type | Receptacle |
| Number of Ports | 1 Port | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | Operating Temperature - Junction | 105C |
Documents & Media
Similar Parts
5223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS R/A UNIVER Z-PACK TE Connectivity 2, 3mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 10A Hard Metric Connectors UPM R/A KEYED GUIDE PIN Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE CONN PLUG 3POS UNV,PWR,MDL.HDR,R-PEGS
223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) UNV,PWR,MDL.HDR,R-PEGS Hard Metric Connectors UNV PWR MDL. R-PEGS Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE 3 Position 2 mm Plug Right Angle Through Hole Press Fit Universal Power Module TE Connectivity 3mm节距 3路 (1排) 直角 背板连接器, 按压安装端接 , 通孔

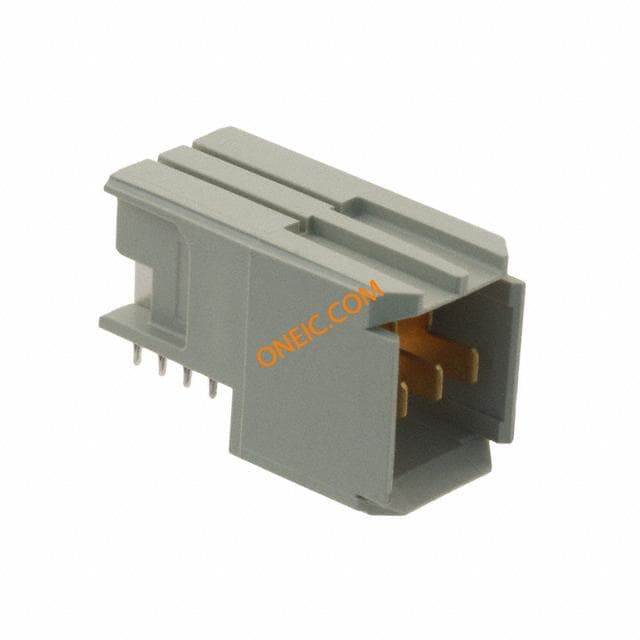

5-5223961-1
