5-5223961-1
| Manufacturer | |
| Description | Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS BLADE RT ANG GOLD Header horizontal 3 way Blade U-P Module Hard Metric Connectors HDR 1X003P R/A HC B-PLANE UPME Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HEADER, UPM, R/A, 3WAY Headerhorizontal3wayBladeU-PModule TE Connectivity Z-PACK HM 系列 2mm 节距 3 路 直角 1 排 公 背板连接器, 按式端子, 10A UPM PIN ASSY, HI CURRENT |
| Category |
Business
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 48 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 10A |
Mechanical
| Color | Gray | Depth | 22.34 mm |
| Pitch | 2 mm | Height | 14.33 mm |
| Weight | 0.05 | Packaging | Tube |
| Termination | Press Fit | Contact Type | Compliant Post |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Male Blades | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Connector Style | Blade Power | Connector Usage | Backplane |
| Contact Material | High Conductivity Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |
| Length - Overall | 12 mm | Primary Material | PowerModule |
| Number of Contacts | 3Power | Contact Termination | :Press Fit Right Angle |
| Number of Positions | 3 | Length - Post (Mating) | 10.90 [0.429] |
| Contact Layout, Typical | 3 Power | Contact Finish Thickness | 3µin (0.08µm) |
Product Info
| Note | Contact area lubricated with Bellcore approved lubricant. | Type | Backplane |
| Gender | Male | Series | Z-Pack |
| Features | Board Guide | Coded, Keyed | No |
| Manufacturer | Z-PACKSeries | Product Type | Plug |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
5-5223955-2
te connectivity / amp
Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS VERT GOLD TE Connectivity Z-PACK HS3 Series 3 Way Straight PCB Socket Through Hole Board to Board Hard Metric Connectors REC 1X003P VRT HC B-PLANE UPME Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 3PCB Mount Angle = VerticalNot KeyedTin Solder Tail Contact PlatingSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UPMRECPT,HICURRENT 3 Position Straight Socket Receptacle Solder Through Hole Connector TE Connectivity Z-PACK HM 系列 3路 直 通孔 印刷电路板插座, 板对板 UPM RECPT, HI CURRENT
120943-1
te connectivity / amp

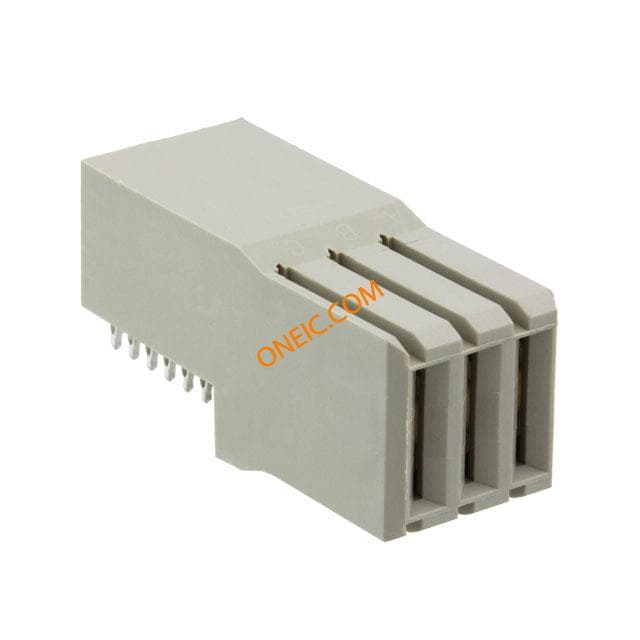

Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port CONN RCPT 3POS R/A GRAY Heavy Duty Power Connectors ASSEMBLY, R/A UPM RECPT, 3 POS Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, RECEPTACLE, UPM, R/A, 3WAY HARD METRIC CONNECTOR, RECEPTACLE, 3POS CONN RCPT 3POS ASSEMBLY, R/A UPM RECPT, 3 POS
