点击放大查看
223961-1
| Manufacturer | |
| Description | Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) UNV,PWR,MDL.HDR,R-PEGS Hard Metric Connectors UNV PWR MDL. R-PEGS Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE 3 Position 2 mm Plug Right Angle Through Hole Press Fit Universal Power Module TE Connectivity 3mm节距 3路 (1排) 直角 背板连接器, 按压安装端接 , 通孔 |
| Category |
Business
| Other Names | 2239611 | Product Category | Hard Metric Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 48 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | UL Flammability Rating | UL 94V-0 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Interface | 2mm HM | Voltage Rating | 250V |
| Voltage - Supply | 250 | Current Rating (Max) | 10 |
Mechanical
| Color | Gray | Depth | 22.34 mm |
| Pitch | 2 mm | Height | 14.33 mm |
| Sealed | Not Sealed | Packaging | Tube |
| Body Color | 灰色 | Wire Gauge | 20 – 10 |
| Orientation | 直角 | Termination | Press Fit |
| Contact Type | Compliant Post | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Male Blades |
| Contact Finish | Gold Over Nickel|Gold Over Palladium Nickel Over Nickel | Mounting Style | Through Hole |
| Number of Pins | 3 | Number of Rows | 1 |
| Package / Case | Plug | Connector Style | Blade Power |
| Connector Usage | Backplane | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer (LCP) |
| Length - Overall | 12 mm | Panel Mount Type | 通孔 - 免焊连接 |
| Termination Rows | 按压安装 | Termination Style | Press Fit |
| Number of Contacts | 3Power | Insulation Diameter | 1.2 – 3.1 mm [ .047 – .122 in ] |
| Number of Positions | 3 | Length - Post (Mating) | 10.90 [0.429] |
| Contact Finish - Mating | 锡铅 | Contact Layout, Typical | 3 Power |
| Termination Post Length | 1.4 mm [ .055 in ] | Contact Finish Thickness | 3µin (0.08µm) |
| Number of Positions/Bay/Row | All | Jacket (Insulation) Thickness | 1.25 µm [ 49.21 µin ] |
Product Info
| Note | Contact area lubricated with Bellcore approved lubricant. | Type | Backplane |
| Gender | PL | Series | Z-Pack |
| Features | Board Guide | Function | Backplane |
| Coded, Keyed | No | Main Purpose | Board Guide |
| Product Type | Plug | Number of Ports | 1 Port |
| Output Configuration | Board Edge, Through Hole, Right Angle | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | Thermal Resistance of Package | 1.57 mm [ .0618 in ] |
Documents & Media
Similar Parts
5223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS R/A UNIVER Z-PACK TE Connectivity 2, 3mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 10A Hard Metric Connectors UPM R/A KEYED GUIDE PIN Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE CONN PLUG 3POS UNV,PWR,MDL.HDR,R-PEGS

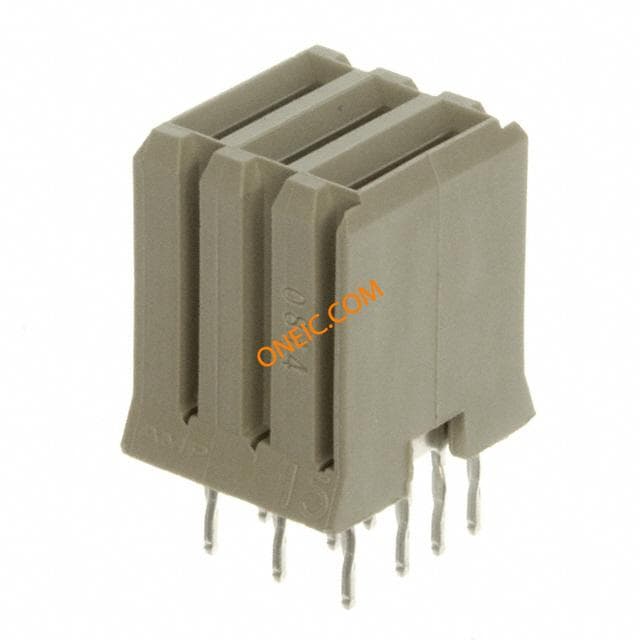

5223955-2
te connectivity / amp
Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS STR UNIVER Z-PACK Female Compact Power Connector Socket Through Hole,Press-In Termination Hard Metric Connectors REC 1X003P VRT B-PLANE UPM high speed backplane connectors Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HARD METRIC CONNECTOR, RECEPTACLE, 3POS RECEPTACLE,UNIVERSALPOWERMODULE,3POSITION,VERTICAL 3 Position Vertical Receptacle Through Hole Press Fit Universal Power Module TE Connectivity 背板连接器 插座 母, 通孔安装, 按式端接 UNV PWR MDL ASY RECEPT

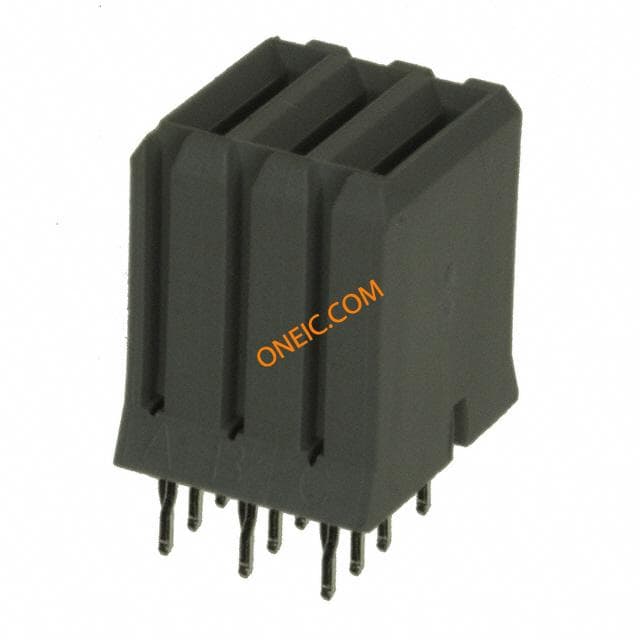

223955-2
