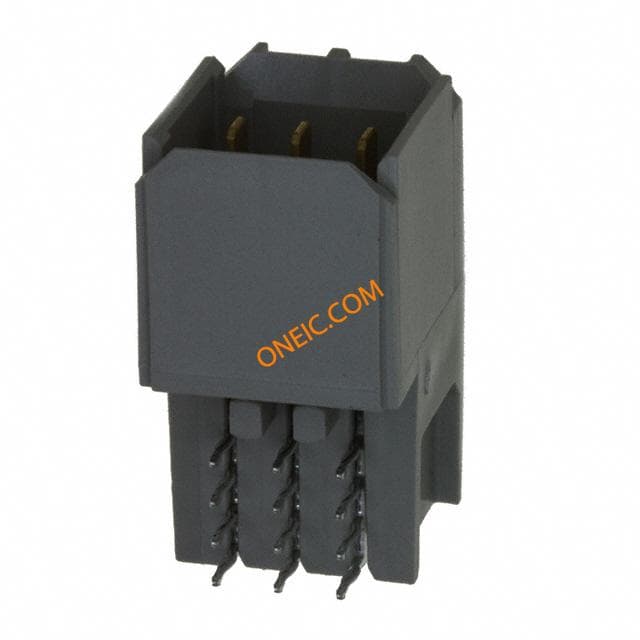

5223961-1
| Manufacturer | |
| Description | Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS R/A UNIVER Z-PACK TE Connectivity 2, 3mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 10A Hard Metric Connectors UPM R/A KEYED GUIDE PIN Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE CONN PLUG 3POS UNV,PWR,MDL.HDR,R-PEGS |
| Category |
Business
| Part # Aliases | 5-223961-1 | Product Category | Hard Metric Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 48 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Interface | 2mm HM | Voltage Rating | 250V |
| Voltage - Supply | 250 | Current Rating (Max) | 10A |
Mechanical
| Color | Gray | Depth | 22.34 mm |
| Pitch | 2 mm | Height | 14.33 mm |
| Sealed | 不密封 | Packaging | Tube |
| Termination | Press Fit | Contact Type | Compliant Post |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Male Blades | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Pins | 3 |
| Number of Rows | 1 | Connector Style | Blade Power |
| Connector Usage | Backplane | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer (LCP) |
| Length - Overall | 12 mm | Panel Mount Type | 通孔 - 免焊连接, 通孔 - 免焊连接 |
| Termination Rows | 3.43 mm [ .135 in ] | Termination Style | Press Fit |
| Number of Contacts | 3Power | Number of Positions | 3 |
| Shell Size - Insert | 插头 | Length - Post (Mating) | 10.90 [0.429] |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 3 Power |
| Contact Finish Thickness | 3µin (0.08µm) | Number of Positions/Bay/Row | All |
Product Info
| Note | Contact area lubricated with Bellcore approved lubricant. | Type | Backplane |
| Gender | HDR | Series | Z-Pack |
| DELETED | Compliant | Features | Board Guide |
| Function | Backplane | Coded, Keyed | No |
| Main Purpose | Board Guide | Product Type | Plug |
| Output Configuration | Board Edge, Through Hole, Right Angle | Application Specifics | Power |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55°C ~ 125°C |
| Thermal Resistance of Package | 1.6 mm [ .063 in ] | ||
Documents & Media
Similar Parts
223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) UNV,PWR,MDL.HDR,R-PEGS Hard Metric Connectors UNV PWR MDL. R-PEGS Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE 3 Position 2 mm Plug Right Angle Through Hole Press Fit Universal Power Module TE Connectivity 3mm节距 3路 (1排) 直角 背板连接器, 按压安装端接 , 通孔

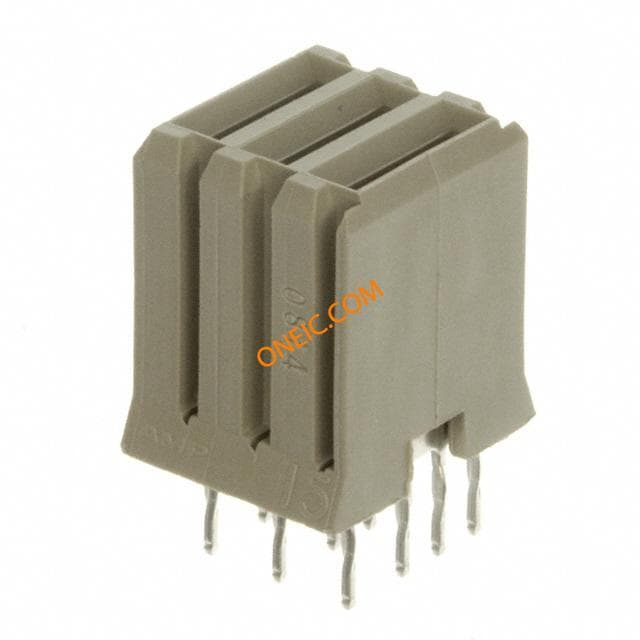

5223955-2
te connectivity / amp
Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS STR UNIVER Z-PACK Female Compact Power Connector Socket Through Hole,Press-In Termination Hard Metric Connectors REC 1X003P VRT B-PLANE UPM high speed backplane connectors Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HARD METRIC CONNECTOR, RECEPTACLE, 3POS RECEPTACLE,UNIVERSALPOWERMODULE,3POSITION,VERTICAL 3 Position Vertical Receptacle Through Hole Press Fit Universal Power Module TE Connectivity 背板连接器 插座 母, 通孔安装, 按式端接 UNV PWR MDL ASY RECEPT

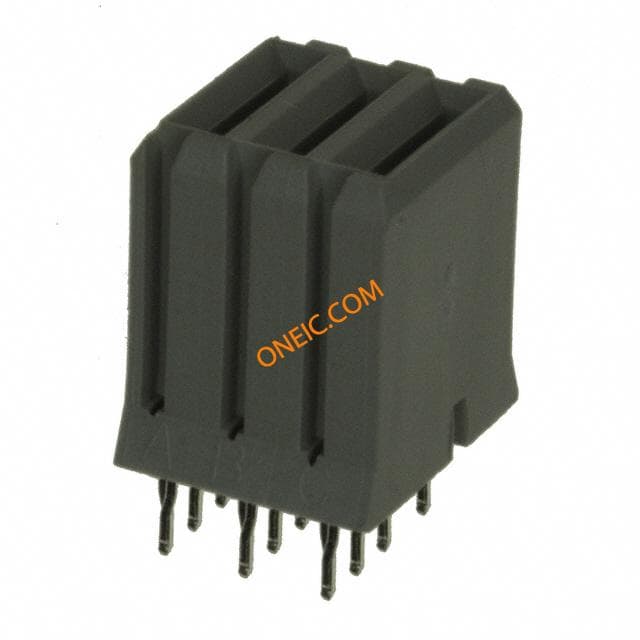

223955-2
