5223963-1
| Manufacturer | |
| Description | Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN HEADER 3POS RT ANG 2MM Header horiz 3 way Blade U-P Module Hard Metric Connectors HDR 1X003P R/A B-PLANE UPM Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorHousing Gender = ReceptacleContact Gender = Blade3 PositionsPCB Mount Angle = Right AngleSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UNV,PWR,MDL,HDR,SEQ 3 Position Plug Right Angle Through Hole Press Fit Universal Power Module |
| Category |
Business
| Other Names | 52239631 | Product Category | Hard Metric Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 48 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Interface | 2mm HM | Voltage Rating | 250V |
| Voltage - Supply | 250 | Current Rating (Max) | 10A |
Mechanical
| Color | Gray | Depth | 22.34 mm |
| Pitch | 2 mm | Height | 14.33 mm |
| Sealed | 不密封 | Packaging | Tube |
| Termination | Press Fit | Contact Type | Compliant Post |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Male Blades | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Pins | 3 |
| Number of Rows | 1 | Connector Style | Blade Power |
| Connector Usage | Backplane | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer (LCP) |
| Length - Overall | 12 mm | Panel Mount Type | 通孔 - 免焊连接, 通孔 - 免焊连接 |
| Termination Rows | 3.43 mm [ .135 in ] | Termination Style | Press Fit |
| Number of Contacts | 3Power | Number of Positions | 3 |
| Shell Size - Insert | 插头 | Length - Post (Mating) | 9.30 [0.366] |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 3 Power |
| Contact Finish Thickness | 3µin (0.08µm) | Number of Positions/Bay/Row | All |
Product Info
| Note | Contact area lubricated with Bellcore approved lubricant. | Type | Backplane |
| Gender | Male | Series | Z-Pack |
| Features | Board Guide | Function | Backplane |
| Coded, Keyed | No | Main Purpose | Board Guide |
| Product Type | Plug | Output Configuration | Board Edge, Through Hole, Right Angle |
| Application Specifics | Power | Number of Positions Loaded | All |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55°C ~ 125°C |
| Thermal Resistance of Package | 1.6 mm [ .063 in ] | ||
Documents & Media
Similar Parts
5223955-2
te connectivity / amp
Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS STR UNIVER Z-PACK Female Compact Power Connector Socket Through Hole,Press-In Termination Hard Metric Connectors REC 1X003P VRT B-PLANE UPM high speed backplane connectors Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HARD METRIC CONNECTOR, RECEPTACLE, 3POS RECEPTACLE,UNIVERSALPOWERMODULE,3POSITION,VERTICAL 3 Position Vertical Receptacle Through Hole Press Fit Universal Power Module TE Connectivity 背板连接器 插座 母, 通孔安装, 按式端接 UNV PWR MDL ASY RECEPT

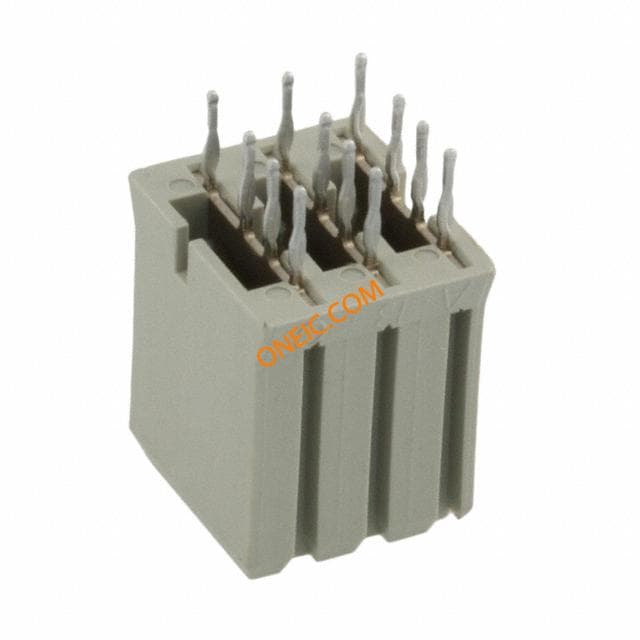

5-5223955-2
