5-102617-8
| Manufacturer | |
| Description | Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 20POS 15AU Headers & Wire Housings HDR 2X10P R/A T/H Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded20 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA SHRD LF |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 176 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 带有 | Packaging | Tray |
| Body Color | 黑色 | End - Size | 1.68 mm [ .066 in ] |
| Lead Style | 直角 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| 2nd Connector | With | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Detent Lock | Mounting Style | 标准 |
| Number of Rows | 2 | Shell Material | 4- 面 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 176 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 20 | Termination Finish | 带罩 |
| Number of Positions | 20 | Length - Post (Mating) | 8.08 mm |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.318" (8.08mm) |
| Termination Post Length | 3.43 mm | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 100 – 200 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Product Type | Headers | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | - 55 C to + 105 C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Documents & Media
Similar Parts
1-87456-6
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL Housing 20 way receptacle 2.54mm AmpModu Headers & Wire Housings 20P HOUSING Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;ModIV;Dual;20;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 20 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 壳体 20 MODIV HSG DR MRKD .100CL
5-102448-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS .100 IDC GOLD Connector;MT(IDC);22to20AWG;InsulationDisplacementCrimp(IDC);Dual 20 AMPMODU MT ASSY DR.100CL SN
102694-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 20P 26-22 20 AMPMODU MT ASSY DR .100CL 20 AMPMODU MT ASSY DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-535598-0
te connectivity / amp
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 20POS .100 DUAL T/H AU Headers & Wire Housings 20 MODIV VRT DR CE RCPT ASSY 20 MODIV VRT DR CE RCPT ASSY 20 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
102394-8
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts 20 AMP MODU MT HSG DR .100CL Headers & Wire Housings 20 HSG DR .100CL Conn Housing RCP 20 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-535585-0
te connectivity / amp
Conn Socket Strip RCP 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 20POS .100 DL TIN Headers & Wire Housings VERT LOW PROFILE 20P 1320 Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 20 MODIV VRT DR CE RCPT ASSY
1-87631-6
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL AmpModu IV receptacle Housing 10+10 way Headers & Wire Housings POLARIZED HSG 20 DBL detent latching Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;20;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 连接器外壳 20 MODIV HSG DR MRKD .100 POL
3-87977-5
te connectivity / amp

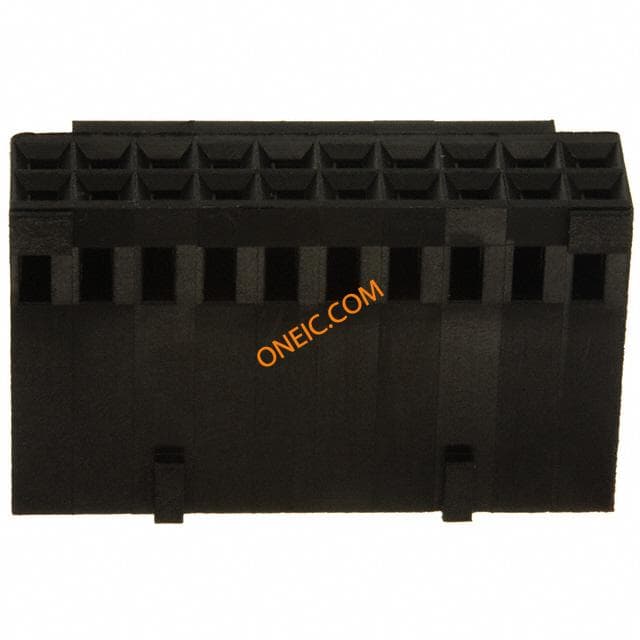

Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings MOD IV HSG 20P Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 MODIV HSG COMP DR .100 POL
86177-1
te connectivity / amp

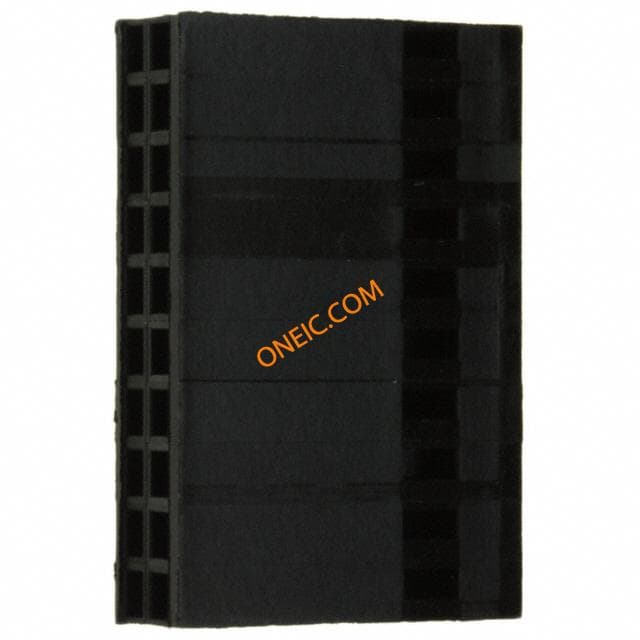

Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL ROW 20 MODIV HSG COMP DR .100CL 20 MODIV HSG COMP DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-87631-5
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 20 POS Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM AMPMODU 20 Position Dual Row 2.54 mm Pitch Crimp Unloaded MOD IV Socket Housing 20 MODIV HSG COMP DR .100 POL
87733-1
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 20POS .100 POL W/STR Headers & Wire Housings RECEPTACLE 20P DUAL Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 MODIV HSG W/STR RLF DR MRKD
1-534206-0
te connectivity / amp
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 20POS .100 VERT DUAL Headers & Wire Housings REC 2X10P VRT T/H Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 20Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, CONNECTOR, RECEPTACLE, THT, 20WAY VERTIIDRCERECASY,20MODIIVRTDRCE100/115 20 MODII VRT DR CE 100/115
102398-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 20P 26-22 Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 20Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 AMPMODU MT ASSY DR .100CL
6-534206-0
te connectivity / amp

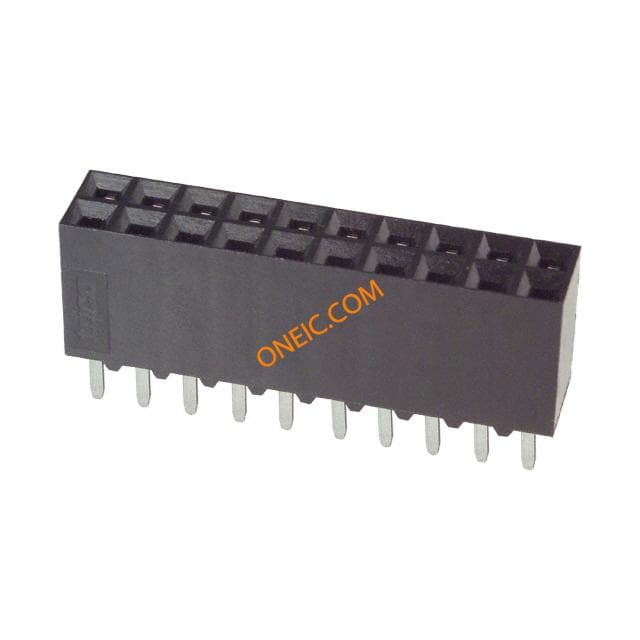

Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 20POS .100 VERT DUAL TE Connectivity 2.54mm 20 Way 2 Row Straight PCB Socket Through Hole Socket Strip Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 20Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 20WAY, 2ROW ReceptacleAssembly;20;Dual;2;750;12Milliohms;Glass-FilledPolyester 20 MODII VRT DR CE 100/115
5-102393-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 20P 30-26 Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 AMPMODU MT ASSY DR.100CL SN
5-102398-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS .100 IDC GOLD AMPMODUMTReceptacleAssembly,20Position Headers & Wire Housings HSG DUAL 20P 26-22 Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 20Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM AMPMODUMTReceptacleAssembly,20Position,IDC,DualRow,.100CL 20 AMPMODU MT ASSY DR .100CL
6-534998-0
te connectivity / amp

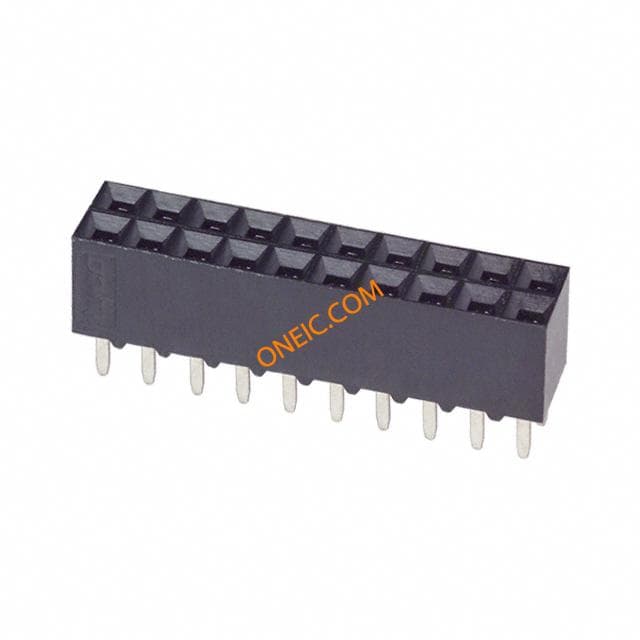

Conn Socket Strip RCP 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 20POS .100 VERT DUAL Headers & Wire Housings REC 2X10P VRT T/H Conn Socket Strip RCP 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 20Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 20WAY, 2ROW VERTIVDRCERECASY,20MODIVVRTDRCE100/125 20 MODIV VRT DR CE 100/125
