1-534206-0
| Manufacturer | |
| Description | Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 20POS .100 VERT DUAL Headers & Wire Housings REC 2X10P VRT T/H Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 20Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, CONNECTOR, RECEPTACLE, THT, 20WAY VERTIIDRCERECASY,20MODIIVRTDRCE100/115 20 MODII VRT DR CE 100/115 |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 22 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | 12 mohm |
| Current Rating (Max) | 2 A | ||
Mechanical
| Color | Black | Depth | 5.03 mm |
| Pitch | 2.54 mm | Height | 8.64 mm |
| Weight | 0.02 | Packaging | Tube |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Length - Overall | 25.4 mm |
| Termination Style | Through Hole | Number of Contacts | 20 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 20 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | AMPMODU MOD II | Product Type | Receptacles / Sockets - PCB |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
5-103168-8
te connectivity / amp

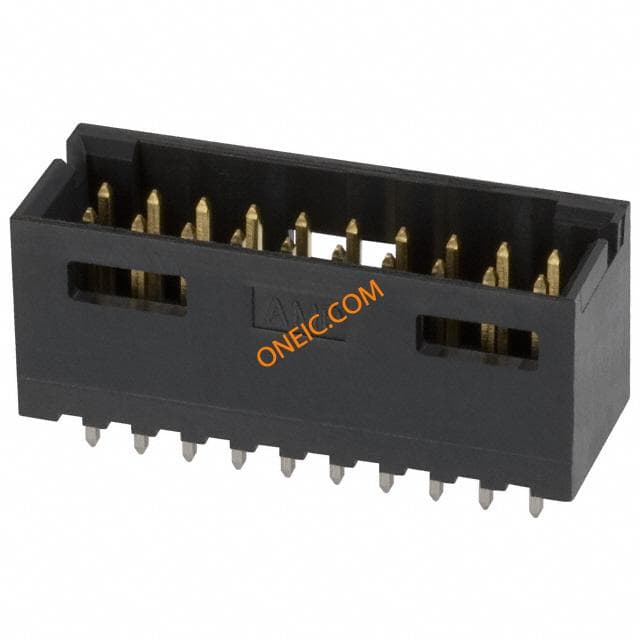

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 30AU Header Vertical 20 way AmpModu Headers & Wire Housings SHROUDED VER DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM MODUTHRUDRHDRSHRD,20MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 通孔 20 MODII HDR DRST SHRD .100CL
87579-7
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RA .100 20POS TIN Headers & Wire Housings SHROUDED RA DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHeader Type = Shrouded20 PositionsMating Post Length = 8.08 mm2.54 mm CenterlineSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA SHRD .100CL
102618-8
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 15AU Headers & Wire Housings SHROUDED VER DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRST SHRD .100CL
86479-1
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RT/A .100 20POS 30AU Headers & Wire Housings UNSHRD R.A. DUAL 20P Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA UNSHRD .100
1-104433-0
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 20POS DUAL 15AU Headers & Wire Housings 20 MODII HDR DRST B/A W/HD 20 MODII HDR DRST B/A W/HD 20 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,
1-87230-0
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RT/A 20POS .100 15AU Headers & Wire Housings UNSHRD R.A. DUAL 20P Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA UNSHRD .100
5-102617-8
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 20POS 15AU Headers & Wire Housings HDR 2X10P R/A T/H Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded20 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA SHRD LF
1-104353-0
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 20POS R/A DUAL Headers & Wire Housings 20 MODII HDR DRRA B/A W/HLDWN 20 MODII HDR DRRA B/A W/HLDWN 20 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,
147279-5
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HEADER B/A 20POS DL GOLD Headers & Wire Housings 20 MODII HDR DR SFMT B/A T&R .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Breakaway20 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DR SFMT B/A T&R
5-102699-9
te connectivity / amp

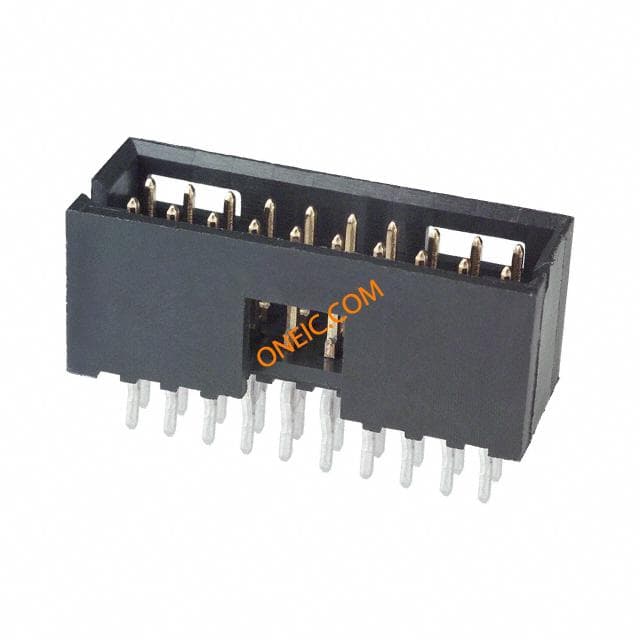

Conn Shrouded Header HDR 20 POS 2.54mm Press Fit ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 20POS PCB 30AU Headers & Wire Housings HDR VT 20P PCB 30AU .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.13 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRST SHRD A/PIN
