点击放大查看
1-87631-6
| Manufacturer | |
| Description | Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL AmpModu IV receptacle Housing 10+10 way Headers & Wire Housings POLARIZED HSG 20 DBL detent latching Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;20;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 连接器外壳 20 MODIV HSG DR MRKD .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Voltage Rating | 250 V |
| Switch Function | Detent Latching | Voltage - Breakdown | 750V |
| Current Rating (Max) | 3 A | Insulation Resistance | 5000Megohms |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Width | 6.1mm |
| Length | 25.40mm | Weight | 0.00181 |
| Packaging | Bulk | Wire Gauge | 20-30 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | CrimpSnap-In |
| Contact Type | Female Socket | Polarization | Yes |
| Housing Color | Black | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | :- | Fastening Type | Locking Ramp |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Glass Fibre Reinforced Thermoplastic | Length - Overall | 25.4 mm |
| Primary Material | InterconnectSystem | Connector - Cable | Yes |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 20 |
| Contact Termination | Crimp | Insulation Diameter | 0.069or0.046" |
| Number of Positions | 20 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MOD IV |
| Manufacturer | AMPMODU/MODIVSeries | Product Type | Receptacles / Sockets - Housings |
| Application Specifics | Board to Board | Matrix (Columns x Rows) | 0.100x0.100in. |
| For Use With/Related Products | MOD 1/2 Wire to Board Standard Pressure Contact | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts

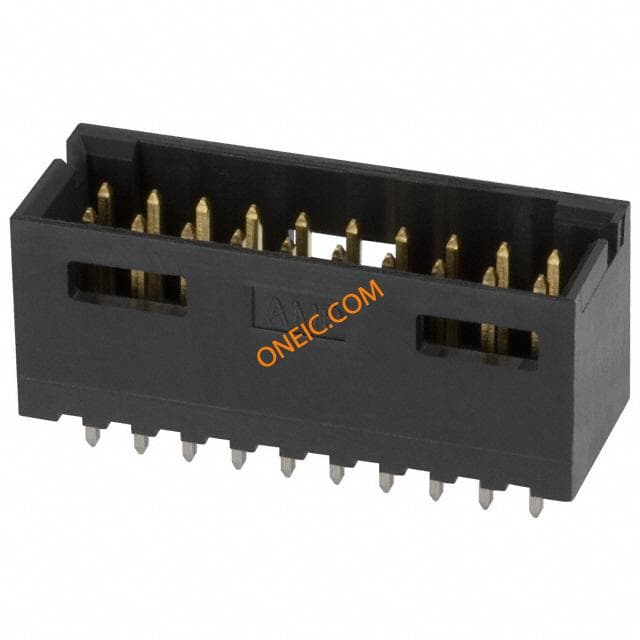

5-103168-8
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 30AU Header Vertical 20 way AmpModu Headers & Wire Housings SHROUDED VER DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM MODUTHRUDRHDRSHRD,20MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 通孔 20 MODII HDR DRST SHRD .100CL
102619-8
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 15AU Headers & Wire Housings ACTION PIN VERT 20P dual .150 end Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRST SHRD .100CL

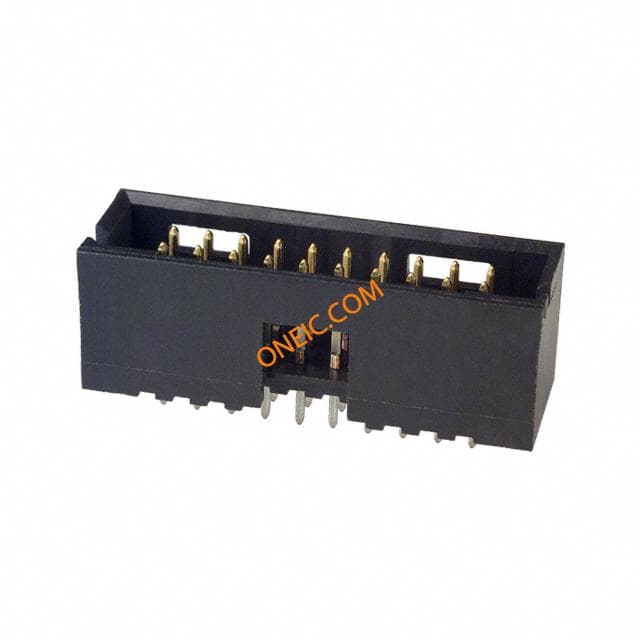

5-102619-8
