1-480707-9
| Manufacturer | |
| Description | Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG BLK |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | ||
Mechanical
| Color | Black | Pitch | 6.35 mm |
| Width | 20.32 | Length | 20.7 |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 黑色 | Row Spacing | 0.250" (6.35mm) |
| Size - Body | .76 – 2.29 mm [ .76 – 2.29 in ] | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Locking Ramp |
| Mounting Style | Panel Mount, Free Hanging | Number of Rows | 3 |
| Package / Case | Receptacle | Height (Inches) | 27.43 |
| Housing Material | Polyamide (PA) | Package Quantity | 1 |
| Panel Mount Type | 带有 | Termination Style | Quick Connect |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| Compatible Shell Size | 适当的通用 MATE-N-LOK 插头 | Contact Layout, Typical | 矩阵 |
| 1st Connector Mounting Type | Panel | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Product Type | Housings |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts

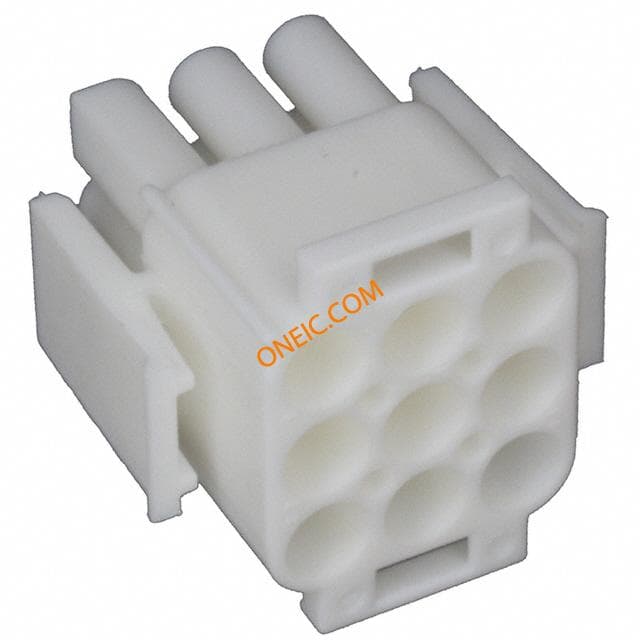

350547-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14 awg Pin & Socket Connectors PIN CONTACT 20-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP TERMINAL, SOLDERLESS CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金触点 UMNL PIN 20-14 AUBR L/P
350720-4
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN HOUSING 9POS FREE HANGING Universal mate-n-lok 9w Plug Connector Pin & Socket Connectors 09P PLUG UL94VO Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 9WAY Conn;PlugHsg;9Pos;UnivMATE-N-LOK;White Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:9; 600V Crimp housing 6.35 mm Poles 9 MATE-N-LOK Universal, 350720-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 9 路 直 公 电缆安装 压接连接器外壳 09P UMNL PLUG HSG UL94VO
1-480706-2
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 9POS 94V-2 RED Power to the Board PLUG HOUSE 9 POS RED UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL PLUG HSG RED
1-480706-9
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 9POS 94V-2 BLK Power to the Board PLUG HOUSE 9 POS BLACK UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL PLUG HSG BLK
350851-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG CONTACT, SOCKET, 24-18AWG, CRIMP UMNL SOK 24-18 AUNIBR
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P
350536-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.50-2.00mm² Power to the Board SOCKET CONTACT 20-14 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP SOCKET, MATE-N-LOK, REEL 5K Mate-n-Lok,Contact,socket,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 UMNL SOK 20-14 .0126 AUNI/BR
350537-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET CONTACT 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLSOK20-14.0126AUNI/BR UMNL SOK 20-14 .0126 AUNI/BR
350218-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14awg,Au Pin & Socket Connectors PIN CONTACT 20-14 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 20-14AWG CRIMP PIN, MATE-N-LOK, REEL 5K UNIVMATE-N-LOKSTRIP,UMNLPIN20-14.0126AUBR Mate N Lok .250" Centerline 600 V 19 - 36 A 20-14 AWG Pin TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 .0126AUBR
350700-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SPLIT PIN 20-14AWG U M-N-L Power to the Board SPLIT PIN 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL SPLIT PIN AU/NI/BR
350851-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board 24-18 SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Universal Mate-N-Lok 24-18 AWG Wire to Cable Crimp Socket Contact TE Connectivity 母 印刷电路板连接器触点, 压接, 镀金触点 UMNL SOK 24-18 AUNIBR
1-480706-0
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS 94V-2 UNI-MATE Housing,plug,free hanging,9way Pin & Socket Connectors PLUG HOUSE 9 POS Conn Housing PL 9 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR HOUSING, PLUG, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:9; 600V Crimp housing Pitch6.35 mm Poles 9 Multi row / Free hanging/cable mount MATE-N-LOK Universal, 1-480706-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 9 路 直 公 面板安装 压接连接器外壳 09P UMNL PLUG HSG NATL
2-480706-0
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG MATRIX 9 CIRCUIT UMNL Power to the Board 09P PLUG HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 9 Position 6.35mm 600V Mate-N-Lok Plug 09P UMNL PLUG HSG NATL
350720-1
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS 94V-0 UNI-MATE 9 way white plug housing Pin & Socket Connectors PLUG HOUSE 9 POS Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:9 Crimp housing Pitch6.35 mm Poles 9 MATE-N-LOK Universal, 350720-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 9 路 直 公 压接连接器外壳 09P UMNL PLUG HSG
350561-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.20-0.80mm² Power to the Board PIN CONTACT 24-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLPIN24-18.0126AU/NI/BR TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 24-18 .0126 AU/NI/BR
350874-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Power to the Board SOCKET 18-14 AWG .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-18AWG TIN CRIMP Mate-n-Lok,Contact,socket,0.80-2.00mm² Power to the Board PIN 12-10 AWG Reel of 2500 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 18-14AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLSOK18-14.0126PTPBR Universal Mate-N-Lok 18-14 AWG Wire to Cable Crimp Socket Contact UMNL SOK 18-14 .0126 PTPBR
350547-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-N-Lok rigid male contact Pin & Socket Connectors PIN 20-14 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14 AWG, CRIMP PRE-TINNEDBRASS,UNIVERSALPIN;20-14AWG Contact; male; 0.5÷2mm2; Universal MATE-N-LOK; tinned; crimped Crimp pin Male 20...14 AWG, 350547-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL PIN 20-14 PTPBR L/P

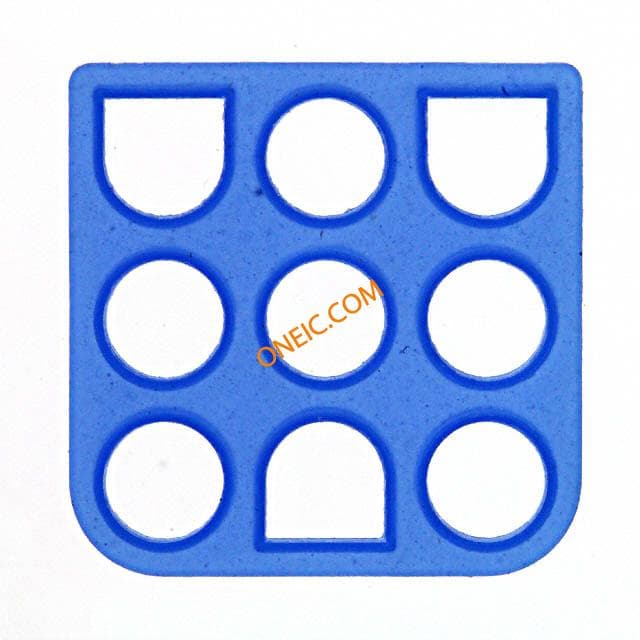

794277-1
