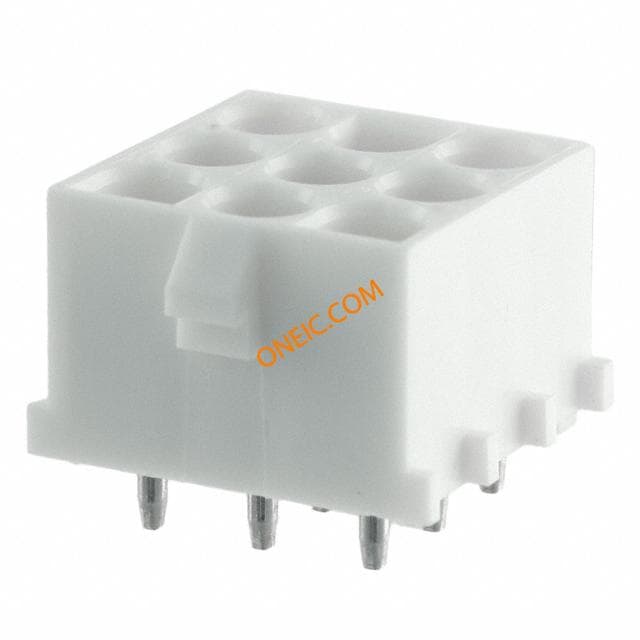

350720-1
| Manufacturer | |
| Description | Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS 94V-0 UNI-MATE 9 way white plug housing Pin & Socket Connectors PLUG HOUSE 9 POS Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:9 Crimp housing Pitch6.35 mm Poles 9 MATE-N-LOK Universal, 350720-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 9 路 直 公 压接连接器外壳 09P UMNL PLUG HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 19 A |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 27.31mm |
| Pitch | 6.35 mm | Length | 27.43mm |
| Weight | 0.008 | Material | :Nylon |
| Packaging | Bulk | Wire Gauge | 10-30 AWG |
| Row Spacing | 0.250" (6.35mm) | Contact Type | Male or Female |
| Pitch - Post | 6.35mm | Housing Color | White |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 3 | Locking Feature | lock |
| Material Finish | :- | Housing Material | Nylon |
| Length - Overall | 27.43 mm | Package Quantity | 263 |
| Connector - Cable | plug | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| 1st Connector Mounting Feature | 3x3 | ||
Product Info
| Spg | 263 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | MATE-N-LOK | DELETED | Compliant |
| CAD Drawing | 3D CAD Model | Product Type | Receptacle Housings |
| Adapter Series | Universal MATE-N-LOK | Number of Units | 1 |
| For Use With/Related Products | Centerline Splash Proof/Sealed Connector | ||
Environmental
| Operating Temperature | -55C to 105C | ||
