1-480706-0
| Manufacturer | |
| Description | Conn Housing PL 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS 94V-2 UNI-MATE Housing,plug,free hanging,9way Pin & Socket Connectors PLUG HOUSE 9 POS Conn Housing PL 9 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR HOUSING, PLUG, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:9; 600V Crimp housing Pitch6.35 mm Poles 9 Multi row / Free hanging/cable mount MATE-N-LOK Universal, 1-480706-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 9 路 直 公 面板安装 压接连接器外壳 09P UMNL PLUG HSG NATL |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-2 | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 19 A |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 27.43mm |
| Pitch | 6.35 mm | Length | 27.38mm |
| Weight | 0.006 | Material | :Nylon |
| Packaging | Bulk | Row Spacing | 0.250" (6.35mm) |
| Contact Type | Male or Female | Pitch - Post | 6.35mm |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 3 |
| Housing Material | Nylon | Length - Overall | 27.38 mm |
| Package Quantity | 1 | Connector - Cable | plug |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Natural | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| 1st Connector Mounting Feature | 3x3 | ||
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | MATE-N-LOK | Product Type | Receptacle Housings |
| Adapter Series | Universal MATE-N-LOK | Number of Units | 1 |
| For Use With/Related Products | Centerline Splash Proof/Sealed Connector | ||
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts
1-480707-3
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS UNIV-M-N-L ORANGE
1-350782-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-0 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-0 09P UMNL V0 CAP HSG BLACK 09P UMNL V0 CAP HSG BLACK Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
641971-1
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9POS VERT MATE-N-LOK Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;9Pos;UnivMATE-N-LOK;Vertical;Natural 09P UMNL PIN HDR ASSY V2 NATL
1-480707-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG BLK
643426-3
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P SOK HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL SOK HDR ASSY POL LF
1-480707-0
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Housing,receptacle,free hanging,9way Pin & Socket Connectors CAP HOUSE 9 POS Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:9; 600V Receptacle housing Pitch6.35 mm Poles 9 Multi row / for panel mount MATE-N-LOK Universal, 1-480707-0, TE Connectivity 09P UMNL CAP HSG NATL

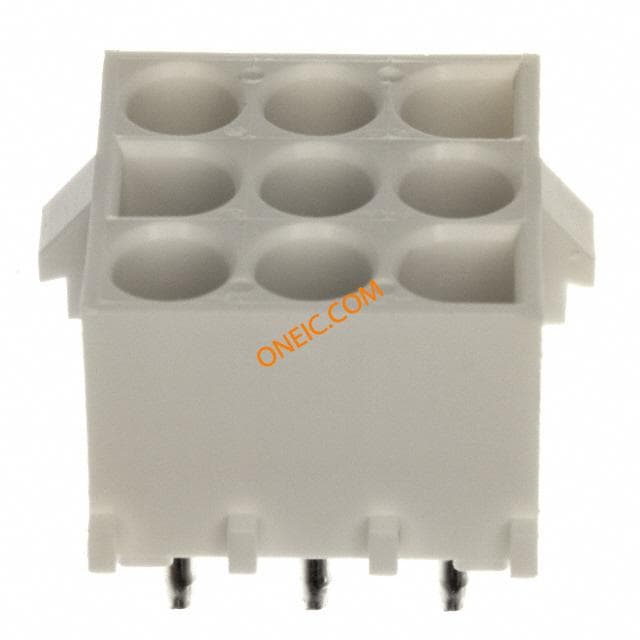

350835-1
