2-480706-0
| Manufacturer | |
| Description | Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG MATRIX 9 CIRCUIT UMNL Power to the Board 09P PLUG HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 9 Position 6.35mm 600V Mate-N-Lok Plug 09P UMNL PLUG HSG NATL |
| Category |
Business
| Standard Pack | 1 | Product Category | Power to the Board |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Connector - Voltage Input | Crimp |
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Row Spacing | 0.250" (6.35mm) | Contact Form | Male or Female |
| Contact Type | Male or Female | Lead Spacing | 0.250" (6.35mm) |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 3 |
| Package / Case | Plug | Panel Thickness | .03 – .09 |
| Housing Material | Nylon | Package Quantity | 1 |
| 1st Contact Gender | Pin (Male), Socket (Female) | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| Compatible Shell Size | 适当的通用 MATE-N-LOK 母端或公端 | Contact Layout, Typical | 矩阵 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok |
| Product Type | Connectors | Output Configuration | Free Hanging (In-Line) |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
1-480707-3
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS UNIV-M-N-L ORANGE
1-350782-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-0 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-0 09P UMNL V0 CAP HSG BLACK 09P UMNL V0 CAP HSG BLACK Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
641971-1
te connectivity / amp

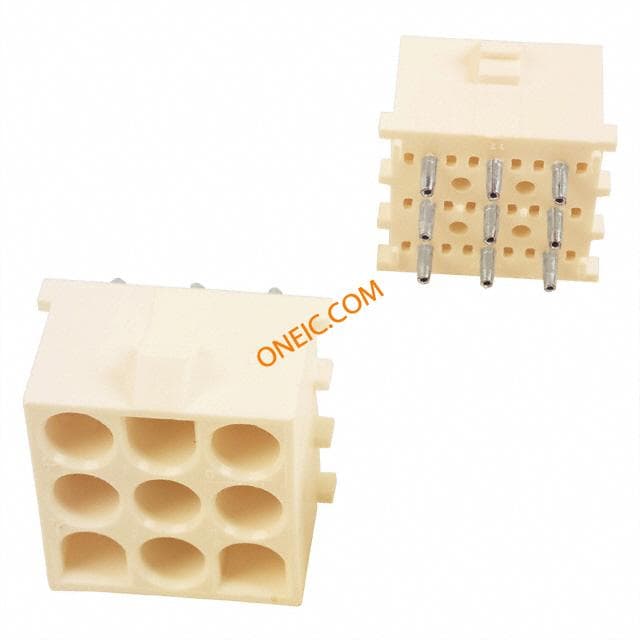

Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9POS VERT MATE-N-LOK Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;9Pos;UnivMATE-N-LOK;Vertical;Natural 09P UMNL PIN HDR ASSY V2 NATL
1-480707-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG BLK
643426-3
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P SOK HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL SOK HDR ASSY POL LF
1-480707-0
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Housing,receptacle,free hanging,9way Pin & Socket Connectors CAP HOUSE 9 POS Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:9; 600V Receptacle housing Pitch6.35 mm Poles 9 Multi row / for panel mount MATE-N-LOK Universal, 1-480707-0, TE Connectivity 09P UMNL CAP HSG NATL
350835-1
te connectivity / amp

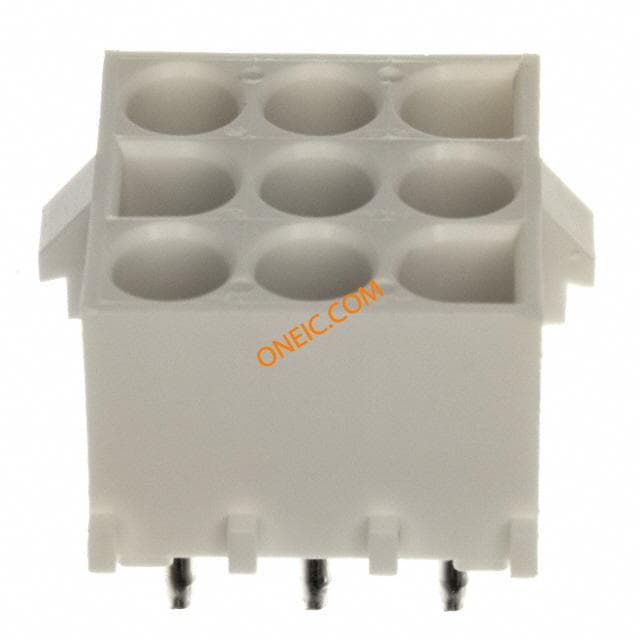

Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board PCB SOCKET HDR 9P .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL HDR ASSY PC 94VO
