1-350782-9
| Category |
对参数有疑问?问 AI 助手
Business
| Standard Pack | 1 | Product Category | Power to the Board |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | ||
Mechanical
| Color | Black | Pitch | 6.35 mm |
| Width | 27.43 | Length | 20.32 |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 黑色 | Row Spacing | 0.250" (6.35mm) |
| Size - Body | .76 – 2.29 mm [ .03 – .09 in ] | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Locking Ramp |
| Mounting Style | Panel Mount, Free Hanging | Number of Rows | 2 |
| Package / Case | Receptacle | Height (Inches) | 27.43 |
| Housing Material | Polyamide (PA) | Package Quantity | 1 |
| Panel Mount Type | 带有 | Termination Style | Quick Connect |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| Compatible Shell Size | 适当的通用 MATE-N-LOK 插头 | Contact Layout, Typical | 矩阵 |
| 1st Connector Mounting Type | Panel | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Product Type | Housings |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Online Document
Similar Parts
350547-7
te connectivity / amp
$3.2640
Details

350720-4
te connectivity / amp
$5.0002
Details

1-480706-2
te connectivity / amp
$2.0890
Details

1-480706-9
te connectivity / amp
$2.0328
Details
350851-7
te connectivity / amp
$1.3056
Details
350705-2
te connectivity / amp
$5.3441
Details
350536-2
te connectivity / amp
$3.8932
Details
350537-7
te connectivity / amp
$2.0196
Details

350218-2
te connectivity / amp
$3.3759
Details

350700-7
te connectivity / amp
$2.1760
Details
350851-2
te connectivity / amp
$3.1314
Details

1-480706-0
te connectivity / amp
$1.1832
Details

2-480706-0
te connectivity / amp
$4.3520
Details

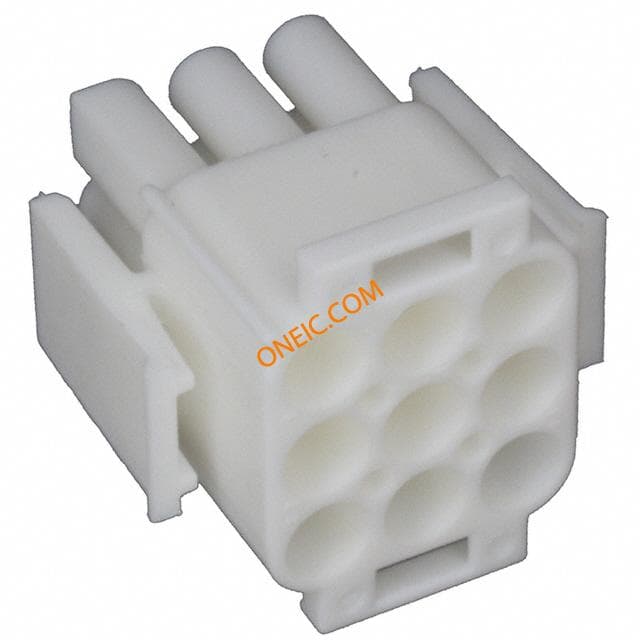

350720-1
te connectivity / amp
$2.8295
Details
350561-7
te connectivity / amp
$1.9946
Details

350874-1
te connectivity / amp
$0.4760
Details
350547-1
te connectivity / amp
$0.0769
Details

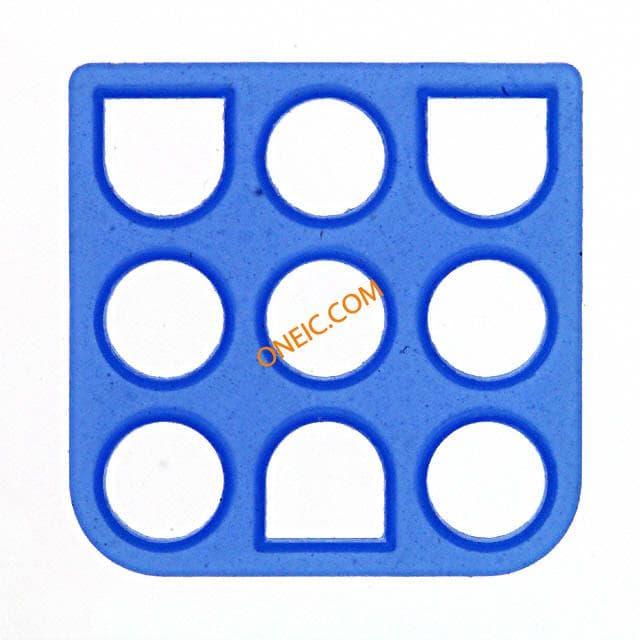

794277-1
