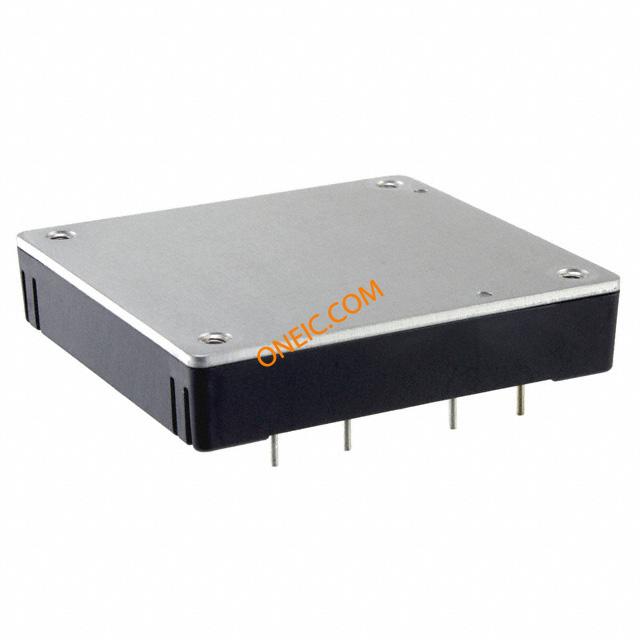

PAH100S48-28/V

Manufacturer	TDK-Lambda Corporation
Description	Module DC-DC 1-OUT 28V 3.6A 100.8W 9-Pin Half-Brick DC-DC CONVERTR 28VDC 100W 3.6A DC/DC Converters 100.8W 28V 3.6A Converter,DCtoDC;100.8W(Max.);48VDC;1;28VDC;3.6A(Max.);80g
Category	Power SolutionsDC DC ConvertersNon-Isolated DC-DC Converters

对参数有疑问？问 AI 助手

Business

Product	Isolated	Part # Aliases	PAH100S4828/V
Standard Package	Bulk	Standard Package Name	Half-Brick

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Standards	ULListed,CSACertified

Electrical

Output	28VDC@3.6A	Isolation	Isolated
Operation	Switching	Efficiency	88%
Output Type	Brick Converter	Power - Max	100W
Output Power	100.8 W	Power - Rated	100.8W(Max.)
Power - Output	100.8W	Voltage Rating	28 V
Line Regulation	96mV(Max.)	Load Regulation	96mV(Max.)
Current - Output	3.6 A	Voltage - Supply	28VDC
Number of Outputs	1	Power (Watts) - Max	101W
Voltage - Isolation	1.5kV (1500V)	Current Rating (Max)	3.6A(Max.)
Voltage - Input (Min)	28V	Current - Output / Channel	3.6 A

Mechanical

Width	61 mm	Height	12.7 mm
Length	54.9 mm	Weight	80g
Packaging	Bulk	Lead Style	Through Hole
Mounting Type	Through Hole	Mounting Style	PCB
Package / Case	9Half-Brick	Length - Overall	61
Package Quantity	Half-Brick	Primary Material	DC-DC
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)	Number of Positions	9
Shell Size - Insert	12.7

Product Info

Type	Step Down	Series	PAH
Features	Remote On/Off, OCP, OTP, OVP	Manufacturer	PAHSeries
Configuration	Encapsulated	Printed Circuit Board	9

Environmental

Operating Temperature

-40°C ~ 100°C

Documents & Media

PDF Document

pah.pdf

PDF Document

PAH Series

PDF Document

pah.pdf
