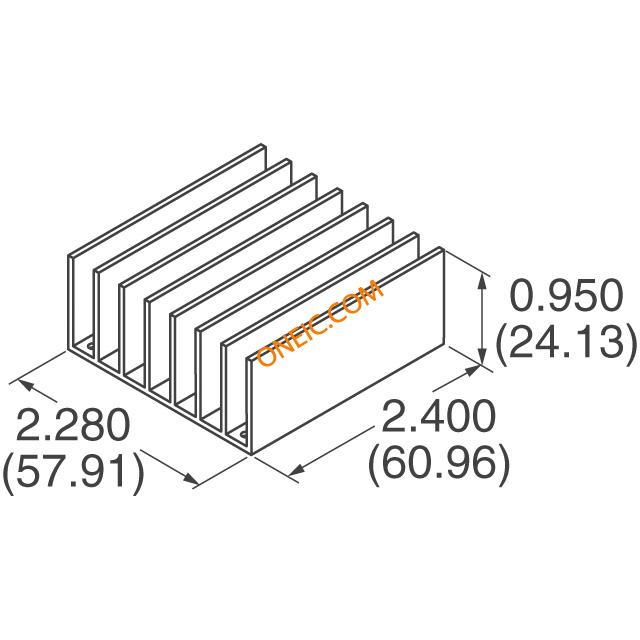

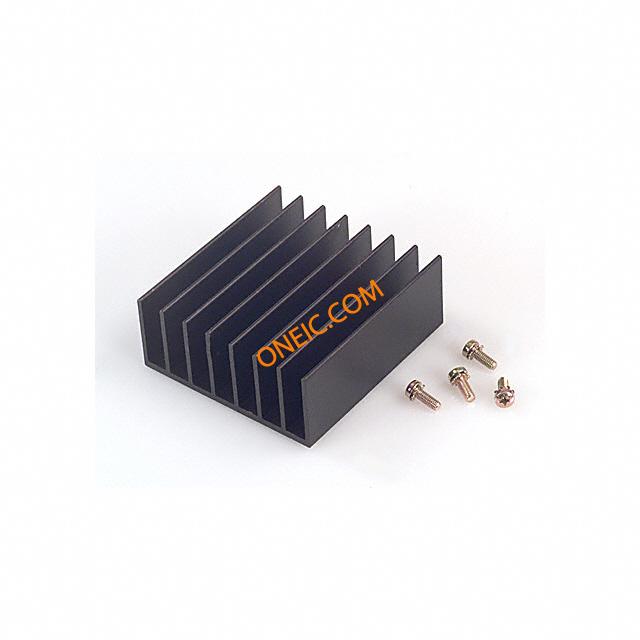

518-95AB-MS4
| Manufacturer | |
| Description | Heat Sinks HALF BRICK VERT FIN HEATSINK DC/DC HALF BRICK VERT HEAT SINK Heatsink;HalfBrick;Vert;8Fin;11W;M3x8mmPhillipsSEMFastener;DeltalinkIV |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 56 Days |
| Subcategory | Heat Sink | Product Category | Heat Sinks |
| Standard Package | 1 | Factory Pack Quantity | 250 |
Compliance
| RoHS | No | Tariff No | 90261089 |
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 57.9 mm | Finish | BlackAnodized |
| Height | 24.1 mm | Length | 61 mm |
| Weight | 0.059 | Material | Aluminum |
| Fin Height | Unidirectional Fin | Mounting Type | Vertical |
| Mounting Style | Screw | Number of Pins | 8 |
| Package / Case | Half-Brick | Package Cooled | Half Brick DC/DC Converter |
| Width (Inches) | :2.28" | Height (Inches) | :0.949" |
| Material Finish | Black Anodized | Width - Overall | :57.9mm |
| Front Connection | 2°C/W@300FPM | Length - Overall | :61mm |
| Primary Material | Half-Brick | Size / Dimension | 2.28×2.28in. |
| Attachment Method | Bolt On, Thermal Material | Heat Sink Material | Aluminum |
| Height Above Board | 0.95in. | Height - Seated (Max) | 0.950" (24.13mm) |
| Shell Size - Insert (Convert From) | :24.1mm | ||
Product Info
| Type | Board Level | Features | ExtrudedHeatSink,VerticalFinOrientation |
| Application | DC/DC Converters | Configuration | Vertical |
| Bus Connection | 60°C@11W | Application Specifics | DC,DCConverters |
Environmental
| Thermal Resistance | 2.2 C/W | Power Dissipation @ Temperature Rise | 11W @ 60°C |
| Thermal Resistance @ Forced Air Flow | 2.0°C/W @ 300 LFM | ||
