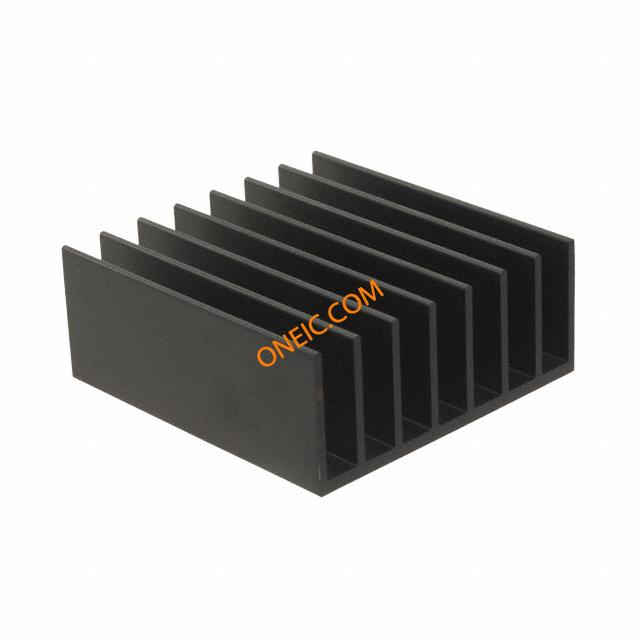

518-95AB
| Manufacturer | |
| Description | Heat Sinks HALF BRICK VERT FIN HEATSINK DC/DC HALF BRICK VERT Heat Sink Passive Vertical Aluminum 2°C/W Black Anodized Heatsink;HalfBrick;Veritcal;8Fin;11W;2.2C/W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 56 Days |
| Subcategory | Heat Sink | Product Category | Heat Sinks |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 57.9 mm | Finish | BlackAnodized |
| Height | 24.1 mm | Length | 61 mm |
| Material | Aluminum | Fin Height | Unidirectional Fin |
| Mounting Type | Vertical | Mounting Style | Screw |
| Number of Pins | 8 | Package / Case | Half-Brick |
| Package Cooled | Half Brick DC/DC Converter | Material Finish | Black Anodized |
| Front Connection | 2°C/W@300FPM | Primary Material | Half-Brick |
| Size / Dimension | 2.28×2.28in. | Attachment Method | Bolt On |
| Heat Sink Material | Aluminum | Height Above Board | 0.95in. |
| Height - Seated (Max) | 0.950" (24.13mm) | ||
Product Info
| Type | Board Level | Features | ExtrudedHeatSink,VerticalFinOrientation |
| Application | DC/DC Converters | Configuration | Vertical |
| Bus Connection | 60°C@t11W | Application Specifics | DC,DCConverters |
Environmental
| Thermal Resistance | 2.2 C/W | Power Dissipation @ Temperature Rise | 11W @ 60°C |
| Thermal Resistance @ Forced Air Flow | 2.0°C/W @ 300 LFM | ||
