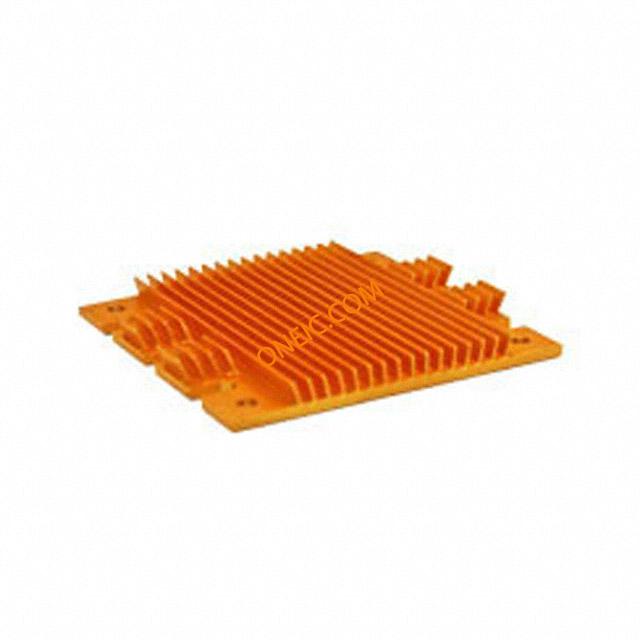

ATS-1143-C1-R0

点击放大查看

ATS-1143-C1-R0

Manufacturer
Advanced Thermal Solutions, Inc.
Description
1/2 BRICK HEATSINK 58X61X6.1MM Heat Sinks MAXIFLOW 1/2 BRICK 58 X 61 X 6.1 (MM) ATS-1143-C1-R0
Category
Circuit Protection SolutionsThermal Cutoffs, Cutouts (TCO)Heat Sinks
对参数有疑问？问 AI 助手

Business

ProductHeat SinksOther NamesATS1504
Standard Package1

Compliance

RoHSRoHS Compliant

Mechanical

ColorGoldShapeRectangular, Pin Fins
Width2.401" (61.00mm)Length2.283" (58.00mm)
MaterialAluminumPackagingBulk
Package CooledHalf Brick DC/DC ConverterMaterial FinishGold Anodized
Attachment MethodBolt OnHeat Sink MaterialAluminum
Height - Seated (Max)0.240" (6.10mm)

Product Info

TypeTop MountSeriesmaxiFLOW
ApplicationDC/DC ConvertersConnection TypeBolt On

Environmental

Thermal Resistance @ Forced Air Flow9.4°C/W @ 200 LFM

Documents & Media

PDF Document
ATS-1143-C1-R0
Online Document
ATS-1143-C1-R0
PDF Document
11ats-1143-c1-r0.ashx.pdf

Similar Parts

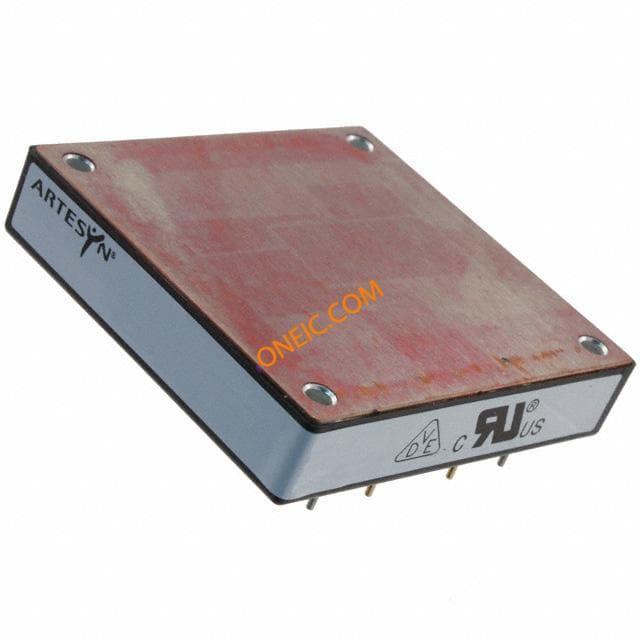

RFB300-24S12-R5Y
