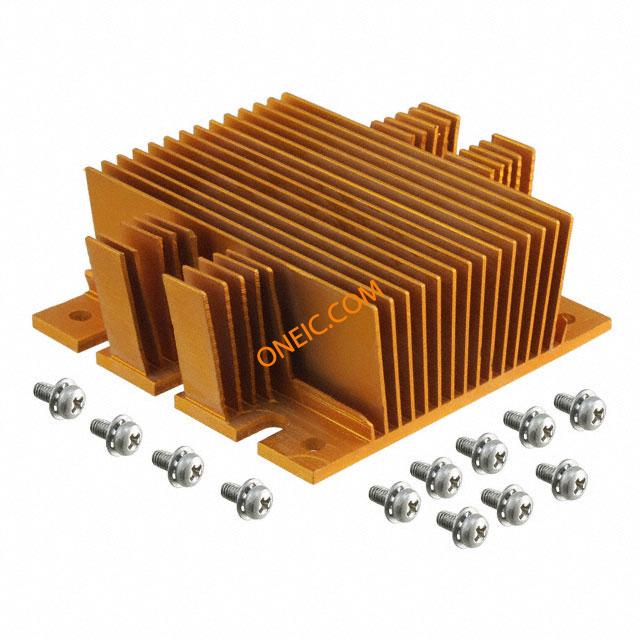

ATS-1146-C1-R0

点击放大查看

ATS-1146-C1-R0

Manufacturer
Advanced Thermal Solutions, Inc.
Description
MAXIFLOW 1/2 BRICK HEAT SINK 1/2 BRICK HEATSINK 58X61X22.9MM Heat Sinks MAXIFLOW 1/2 BRICK 58 X 61 X 22.9 (MM) ATS-1146-C1-R0
Category
Circuit Protection SolutionsThermal Cutoffs, Cutouts (TCO)Heat Sinks
对参数有疑问？问 AI 助手

Business

ProductHeat SinksOther NamesATS1506
Standard Package1

Compliance

RoHSRoHS Compliant

Mechanical

ColorGoldShapeRectangular, Pin Fins
Width2.401" (61.00mm)Length2.283" (58.00mm)
MaterialAluminumPackagingBulk
Package CooledHalf Brick DC/DC ConverterMaterial FinishGold Anodized
Attachment MethodBolt OnHeat Sink MaterialAluminum
Height - Seated (Max)0.902" (22.90mm)

Product Info

TypeTop MountSeriesmaxiFLOW
ApplicationDC/DC Converters

Environmental

Thermal Resistance @ Forced Air Flow1.3°C/W @ 200 LFM

Documents & Media

PDF Document
ATS-1146-C1-R0
PDF Document
9ats-1146-c1-r0.ashx.pdf
