STEVAL-ILL017V1
| Manufacturer | |
| Description | Offline Constant Current LED Driver Based On The Viper17 LED Lighting Development Tools LED DRIVER BASED ON VIPER17HN BOARD DEMO BASED ON VIPER17HN LED Driver Eval Board using VIPer17 VIPER17HN, LED DRIVER, 3.5W, DEV BOARD VIPER17HN, LED DRIVER, NON ISOLATED, DEMO BOARD LEDDRIVEREVALBOARD STMicroelectronics |
| Category |
Business
| Product | Demonstration Boards | Product Category | LED Lighting Development Tools |
| Standard Package | Boxed | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84733020 |
Electrical
| Dimming | :PWM | Core Size | :VIPer17 |
| Core Type | VIPER17HN | Voltage - Supply | 220 V |
| Number of Elements | :Viper17 | Voltage - Input (Min) | 7V |
| Current - Output / Channel | 500mA | ||
Mechanical
| Weight | 0.002 | Packaging | Bulk |
Product Info
| Type | Development Kit | Contents | Board |
| Features | Short-Circuit and Thermal Protection | Kit Type | :Display |
| Topology | :- | Kit Contents | STEVAL-ILL017V1 Board |
| Outputs and Type | 1, Non-Isolated | Utilized IC / Part | VIPer17 |
| Chipset Manufacturer | :STMicroelectronics | Application Specifics | Adapter, Auxiliary Power Supply, SMPS |
| MCU Supported Families | :VIPer17 | For Use With/Related Products | High Power LEDs |
Documents & Media
Similar Parts
VIPER17HN
stmicroelectronics
High Voltage Converters 7-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 103kHz to 127kHz 7-Pin PDIP IC OFFLINE CONV PWM OVP OCP 8DIP VIPER17HN, AC-DC Converter, 7-Pin, PDIP AC/DC Converters Off-Line High Volt Regulator 交直流转换器, 7引脚 PDIP封装
VIPER17LN
stmicroelectronics
High Voltage Converters 7-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 7-Pin PDIP SMPS DIP-7 THT IC OFFLINE CONV PWM OVP OCP 8DIP AC/DC Converters Off-Line High Volt Regulator AC/DC CONVERTER, 800V, 60KHZ, 7DIP DC-DC converter; DIP7 交直流转换器, 7引脚 PDIP封装

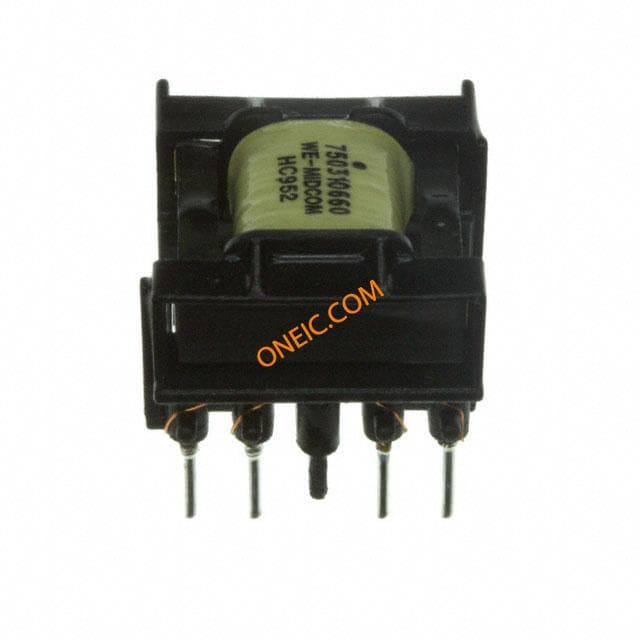

750310660
Midcom / Wurth Electronics
変圧器 オーディオとシグナル Offline Transformer TRANS OFF LINE POWER ST VIPER17H Transformers Audio & Signal Offline Transformer TRANSFORMER, WE-UNIT STM VIPER, 17H

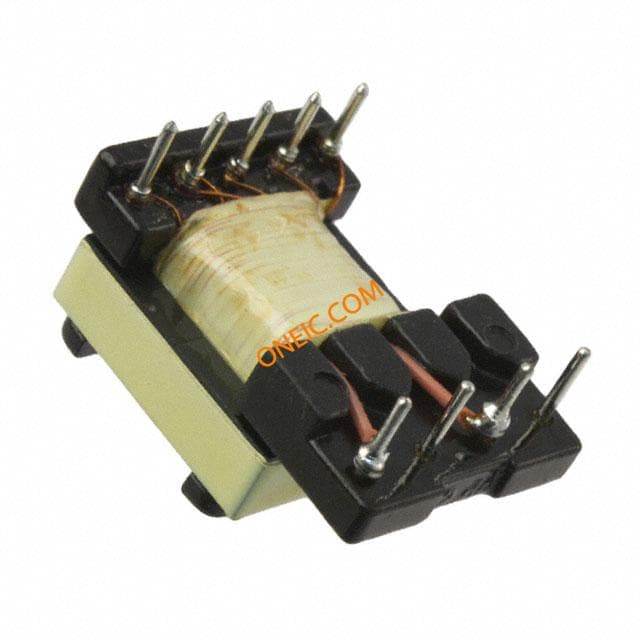

750370024
