VIPER17LD
| Manufacturer | |
| Description | High Voltage Converters 16-Pin SO N Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 16-Pin SO N SMPS SO-16N SMD IC OFFLINE CONV PWM OVP 16SOIC VIPER17LD, AC-DC Converter, 16-Pin SOIC AC/DC Converters Off-Line High Volt Converter OfflineHVConverterVIPer+60kHzSO16 |
| Category |
Business
| MOQ | 2000 | Unit Pack | 50 |
| Product Category | AC/DC Converters | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1000 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 60000Hz | Power (Watts) | 12W |
| Voltage Rating | 800 V | Frequency Range | 54kHz ~ 66kHz |
| Duty Cycle (Max) | 80 % | Output Isolation | Isolated |
| Number of Outputs | 1 | Current - Output 1 | 2.5A |
| Voltage - Breakdown | 800V | Frequency - Switching | 60 kHz |
| Voltage - Input (Min) | 23.5V | ||
Mechanical
| Width | 3.9mm | Height | 1.25mm |
| Length | 9.9mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 16SO N |
| Package Cooled | SO N | Length - Overall | 10(Max) |
| Package Quantity | SO N | Size / Dimension | 9.9 x 3.9 x 1.25mm |
| Number of Positions | 16 | Shell Size - Insert | 1.6(Max) |
| Supplier Device Package | 16-SO | ||
Product Info
| Type | SMPS | Matchcode | VIPER17LD |
| Standard Leadtime | 15 weeks | Printed Circuit Board | 16 |
Environmental
| Operating Temperature | -40 to 150 °C | Maximum Temperature Limit | 150°C |
Documents & Media
Similar Parts
STEVAL-ISA058V1
stmicroelectronics
Single Output SMPS Demonstration Board Based On The Viper17 OffLine High Voltage Converter Power Management IC Development Tools HI PERFORM DEMO BRD HI VLT CONVERTER BOARD EVAL FOR VIPER17LN
STEVAL-ISA060V1
stmicroelectronics
Single Output SMPS Demonstration Board Based On The Viper17 Power Management IC Development Tools 6W SINGLE OUTPUT SMPS VIPER17HN BOARD EVAL VIPER17HN 6W SMPS STEVAL-ISA060V1, Development Kit, Power Management, Demonstration Board VIPER17, SMPS, 6W, DEV BOARD 6WSMPSEVALUATIONBOARD STMicroelectronics 评估测试板 电源管理 处理器和微控制器开发套件
STEVAL-ILL017V1
stmicroelectronics
Offline Constant Current LED Driver Based On The Viper17 LED Lighting Development Tools LED DRIVER BASED ON VIPER17HN BOARD DEMO BASED ON VIPER17HN LED Driver Eval Board using VIPer17 VIPER17HN, LED DRIVER, 3.5W, DEV BOARD VIPER17HN, LED DRIVER, NON ISOLATED, DEMO BOARD LEDDRIVEREVALBOARD STMicroelectronics
STEVAL-ISA062V1
stmicroelectronics
Six W Dual Output SMPS Demonstration Board Based On The Viper17 Power Management IC Development Tools VIPER17HN 6W DUAL SMPS BRD BOARD EVAL BASED ON VIPER17 STEVAL-ISA062V1, Development Kit, Power Management, Demonstration Board VIPER17H, SMPS, 6W, DEV BOARD STMicroelectronics 演示板 电源管理 处理器和微控制器开发套件

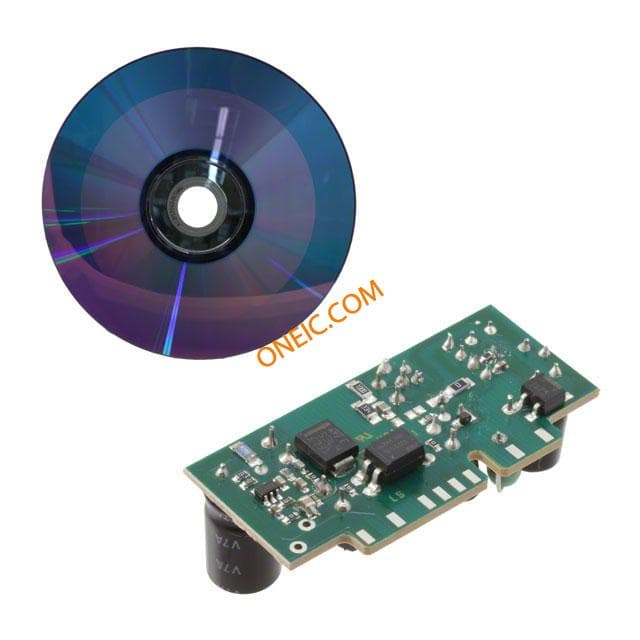

STEVAL-ISA124V1
