VIPER17LN
| Manufacturer | |
| Description | High Voltage Converters 7-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 7-Pin PDIP SMPS DIP-7 THT IC OFFLINE CONV PWM OVP OCP 8DIP AC/DC Converters Off-Line High Volt Regulator AC/DC CONVERTER, 800V, 60KHZ, 7DIP DC-DC converter; DIP7 交直流转换器, 7引脚 PDIP封装 |
| Category |
Business
| MOQ | 2000 | Unit Pack | 50 |
| Product Category | AC/DC Converters | Standard Package | Rail / Tube |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 60000Hz | Power (Watts) | 12W |
| Voltage - Max | 800V | Voltage Rating | 800 V |
| Frequency Range | 54kHz ~ 66kHz | Current - Output | 25 mA |
| Duty Cycle (Max) | 80 % | Output Isolation | Isolated |
| Voltage - Supply | :8.5V | Number of Outputs | 1 |
| Current - Output 1 | 2.5A | Voltage - Breakdown | 800V |
| Frequency - Switching | 60 kHz | Voltage - Input (Min) | 23.5V |
Mechanical
| Width | 6.35 | Weight | 0.000833 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :7 | Package / Case | 7PDIP |
| Material Finish | :- | Length - Overall | 9.27 |
| Package Quantity | PDIP | Number of Positions | 7 |
| Shell Size - Insert | 3.3 | Supplier Device Package | 8-DIP |
Product Info
| Spg | 50 | Type | SMPS |
| Matchcode | VIPER17LN | Number of Units | 1 |
| Standard Leadtime | 28 weeks | Printed Circuit Board | 7 |
Environmental
| Operating Temperature | -40 to 150 °C | Maximum Temperature Limit | 150°C |
Documents & Media
Similar Parts
EVALVIPER17H-6W
STMicroelectronics
Power Management IC Development Tools DEMO BOARD 7W SINGLE OUTPUT ON VIPER17 BOARD EVAL FOR VIPER17H

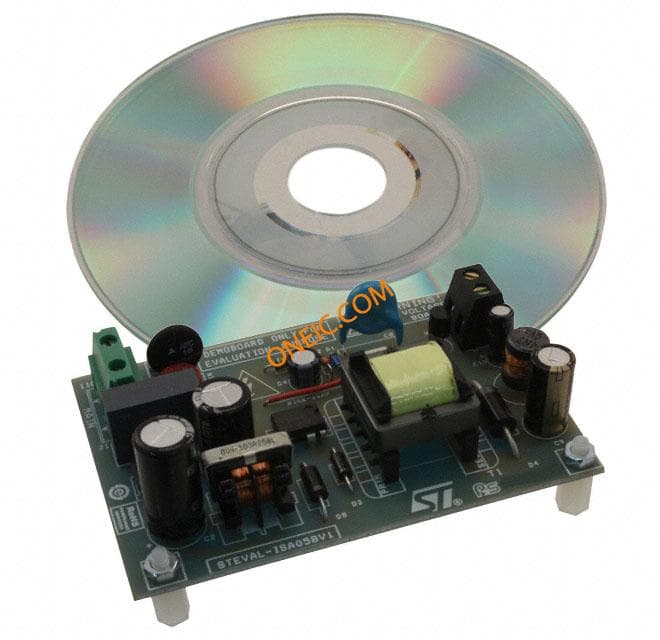

STEVAL-ISA058V1
