VIPER17HDTR
| Manufacturer | |
| Description | AC to DC Switching Converter Off-Line Switcher 103kHz to 127kHz 16-Pin SO N SMPS SO-16N SMD IC OFFLINE CONV PWM OVP 16SOIC VIPER17HDTR, AC-DC Converter, 16-Pin SOIC AC/DC Converters Off-Line Converter 800 V PWM Cntrl |
| Category |
Business
| MOQ | 1 | Unit Pack | 2500 |
| Other Names | 497-7045-2 | Product Category | AC/DC Converters |
| Standard Package | 2,500 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 115000Hz | Power (Watts) | 12W |
| Frequency Range | 103kHz ~ 127kHz | Current - Output | 400 mA |
| Duty Cycle (Max) | 80 % | Output Isolation | Isolated |
| Number of Outputs | 1 | Current - Output 1 | 2.5A |
| Voltage - Breakdown | 800V | Frequency - Switching | 115 kHz |
| Voltage - Input (Min) | 23.5V | ||
Mechanical
| Width | 3.9mm | Height | 1.25mm |
| Length | 9.9mm | Packaging | Tape & Reel (TR) |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | SO-16N |
| Package Cooled | SO N | Length - Overall | 10(Max) |
| Package Quantity | SO N | Size / Dimension | 9.9 x 3.9 x 1.25mm |
| Number of Positions | 16 | Shell Size - Insert | 1.6(Max) |
| Supplier Device Package | 16-SO | ||
Product Info
| Type | SMPS | Matchcode | VIPER17HDTR |
| Standard Leadtime | 15 weeks | Printed Circuit Board | 16 |
Environmental
| Operating Temperature | -40°C | Maximum Temperature Limit | 150°C |
Documents & Media
Similar Parts
EVALVIPER17H-6W
STMicroelectronics
Power Management IC Development Tools DEMO BOARD 7W SINGLE OUTPUT ON VIPER17 BOARD EVAL FOR VIPER17H

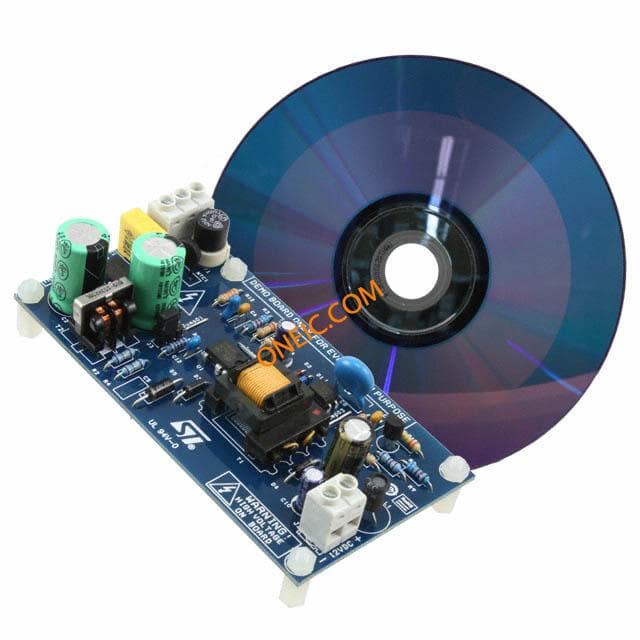

STEVAL-ISA060V1
