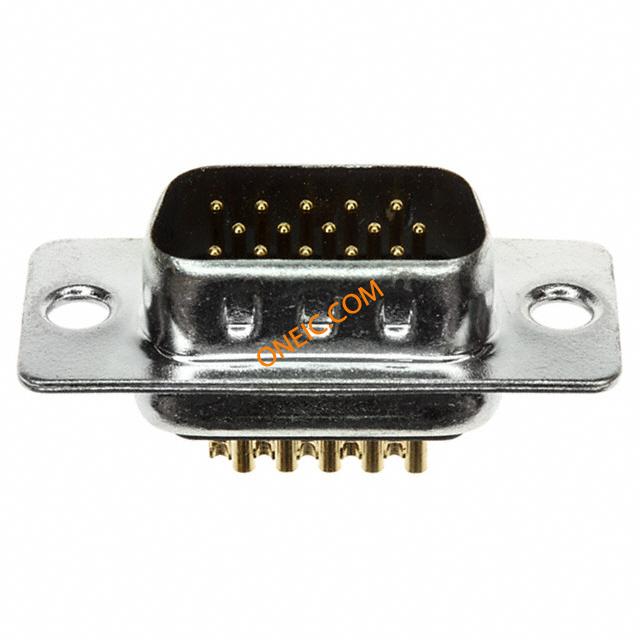

180-M15-103L001
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD Male Sol Cup Machined Nickel CONN DB15 MALE HD SLD CUP NICKEL HD DSUB, PLUG, SOLDER CUP, 15WAY |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 110 | Factory Pack Quantity | 110 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Weight | 0.0051 |
| Packaging | Tray | Shell Size | :DE |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Vertical | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Through Hole |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Material - Body | :Steel |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 15 |
| Contact Termination | :Solder | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Male | Series | :M-Series |
| Features | Grounding Indents, Shielded | ||
Environmental
| Mating Cycles | :100 | Operating Temperature | -55°C ~ 105°C |
